Description
Product Overview

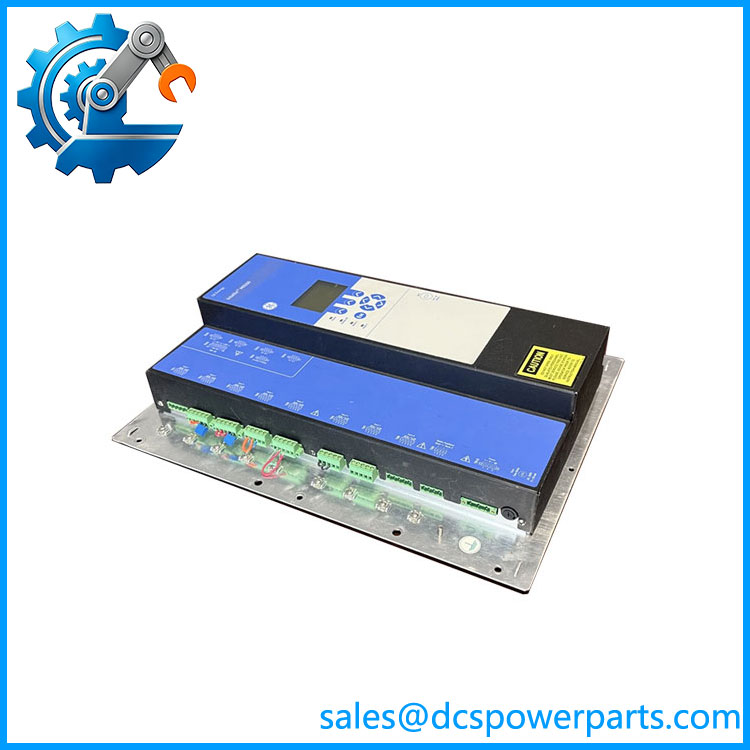

GE INTELLIX MO150 is an online transformer monitoring and diagnostic platform developed for utilities and industrial facilities requiring continuous visibility into critical transformer operating conditions. The system combines sensor inputs, embedded analytical models, and communication functions to evaluate transformer performance and provide early indication of developing problems.
The GE INTELLIX MO150 collects data from multiple transformer measurement points, including dissolved gas monitoring devices, oil temperature sensors, load current transformers, and cooling system feedback. The collected information is processed by the internal controller, which applies transformer thermal and condition models based on IEEE and IEC calculation methods.
Typical system architecture:
Transformer Sensors → INTELLIX MO150 Controller → Diagnostic Models → SCADA / Maintenance System
The INTELLIX MO150 is designed to support condition-based maintenance strategies by providing information related to transformer loading capability, thermal stress, insulation aging, moisture condition, cooling performance, and alarm conditions.
The system includes embedded diagnostic functions that help interpret abnormal conditions. When an alarm occurs, the diagnostic module can identify the condition, describe possible consequences, and provide recommended inspection actions for maintenance personnel.
Common installations include:
- High-voltage substations
- Power generation facilities
- Industrial electrical networks
- Large transformer installations
For replacement applications, engineers should verify sensor compatibility, firmware version, communication configuration, transformer model parameters, and existing diagnostic settings. The monitoring controller is only one part of the complete transformer monitoring system, and incorrect configuration can affect calculated values and alarm accuracy.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Digital Energy |
| Model | INTELLIX MO150 |
| Product Type | Online Transformer Monitoring System |
| Application | Oil-insulated transformer monitoring |
| Controller Type | Microprocessor-based electronic controller |
| Analog Inputs | 8 channels |
| Analog Input Types | PT100 RTD / 4–20 mA isolated inputs |
| AC Inputs | 5 channels |
| Digital Inputs | 2 channels |
| Sensor Support | Hydran gas/moisture sensor, temperature sensors, CT inputs |
| Communication Ports | RS-232, RS-485, Ethernet |
| Protocols | Modbus, DNP3, TCP/IP (configuration dependent) |
| Display | Backlit graphic LCD |
| Memory Storage | Historical alarms, events, and service records |
| Power Supply | 100–230 VAC, 50/60 Hz |
| Operating Temperature | -40°C to +55°C |
| Enclosure Protection | Outdoor industrial enclosure options available |
Specifications are based on GE Digital Energy INTELLIX MO150 technical documentation.
Main Features and Advantages
INTELLIX MO150
Comprehensive Transformer Condition Monitoring
The primary purpose of the GE INTELLIX is continuous monitoring of transformer operating health.
The system evaluates:
- Transformer loading condition
- Oil temperature behavior
- Winding hot-spot temperature
- Cooling system performance
- Moisture condition
- Insulation aging trends
These measurements help maintenance teams understand transformer operating stress over time.
Integrated Transformer Diagnostic Models
The INTELLIX includes embedded analytical models designed for transformer condition evaluation.
Available models include:
- MVA loading calculation
- Winding hot-spot temperature calculation
- Moisture estimation model
- Insulation aging assessment
- Cooling efficiency analysis
- Tap changer thermal monitoring
- Dynamic loading evaluation
Hydran Sensor Integration
The system can integrate with GE Hydran dissolved gas and moisture monitoring technology.
This allows monitoring of:
- Fault gas development
- Moisture increase
- Abnormal transformer conditions
The combination of sensor data and diagnostic models provides a more complete transformer condition picture.
Historical Data Recording
The internal controller stores operational information for analysis.
Stored information includes:
- Alarm history
- Event records
- Service records
- Short-term operating trends
This supports troubleshooting and maintenance planning.
SCADA and Remote Monitoring Integration
The INTELLIX supports industrial communication interfaces for integration with supervisory systems.
Typical connections:
INTELLIX → Ethernet / RS-485 → SCADA / Control Center
Supported protocols may include:
- Modbus
- DNP3
- TCP/IP communication
Application Scenarios
Utility Substations
Used for:
- Power transformer monitoring
- Asset management
- Condition assessment
Power Generation Plants
Applications include:
- Generator step-up transformers
- Auxiliary transformers
- Station service transformers
Industrial Power Systems
Used in:
- Steel plants
- Chemical facilities
- Large manufacturing sites
Transformer Life Management
Supports:
- Maintenance scheduling
- Failure risk evaluation
- Operating condition tracking
Related Components
| Model | Function |
|---|---|
| GE Hydran S2 | Dissolved gas and moisture monitoring sensor |
| GE Hydran M2 | Transformer gas monitoring device |
| GE T-Monitor Series | Transformer monitoring products |
| GE Multilin Protection Relays | Transformer and feeder protection |
| Transformer RTD Sensors | Oil and winding temperature measurement |
Engineer’s Guide: Field Pitfalls
⚠️ Verify Transformer Model Parameters
Diagnostic calculations depend on correct transformer data:
- Rated power
- Voltage ratings
- Cooling method
- Winding configuration
- Thermal constants
Incorrect parameters can produce inaccurate diagnostic results.
⚠️ Check Sensor Calibration
Common issues include:
- Incorrect RTD scaling
- CT ratio mismatch
- Hydran sensor calibration errors
- Loose sensor wiring
Always verify input values against actual field measurements.
⚠️ Review Communication Settings
Before replacement record:
- IP address
- Modbus mapping
- DNP3 configuration
- Serial communication parameters
⚠️ Cooling System Inputs Matter
Cooling diagnostics depend on:
- Fan current monitoring
- Pump status
- Cooling stage configuration
Incorrect cooling feedback can affect thermal calculations.
⚠️ Refurbished Unit Testing Requirements
A proper evaluation should include:
- Controller power-up test
- Display and keypad verification
- Analog input simulation
- Digital input test
- Communication verification
- Sensor interface testing
- Diagnostic model validation
A controller that boots successfully does not confirm accurate transformer monitoring performance.
Frequently Asked Questions
What is GE INTELLIX ?
It is an online transformer monitoring and diagnostic system designed for oil-insulated power transformers.
What does INTELLIX monitor?
It monitors transformer operating conditions including temperature, loading, moisture, dissolved gas information, cooling performance, and insulation aging indicators.
Can INTELLIX connect to SCADA?
Yes. It supports communication interfaces such as Ethernet, RS-232, RS-485, Modbus, and DNP3 depending on configuration.
Is INTELLIX a protection relay?
No. It is a transformer condition monitoring and diagnostic system, not a primary protection relay.
What should be checked before replacement?
Verify:
- Model: INTELLIX
- Firmware revision
- Transformer configuration data
- Hydran sensor compatibility
- Communication settings
- Analog input calibration
- SCADA integration parameters
