ABB HS810 3BDH000305R0101 Head Station Module Product Description
Product Overview
ABB HS810 (3BDH000305R0101) is a Head Station Module designed for the ABB LD 800P PROFIBUS DP/PA Linking Device family. It provides the communication interface between a high-speed PROFIBUS DP network and multiple PROFIBUS PA fieldbus segments, enabling seamless integration of process field devices into ABB industrial automation systems.
The ABB HS810 3BDH000305R0101 is a single-channel head station that connects a PROFIBUS DP master system to up to five PROFIBUS PA Power Link Modules. It supports transparent data transmission and allows PROFIBUS PA devices to communicate with higher-level control systems such as ABB DCS platforms.
Designed for process automation environments, HS810 3BDH000305R0101 provides reliable fieldbus communication, automatic baud-rate detection, and high-speed DP-side connectivity up to 12 Mbit/s. The module is widely used in ABB automation architectures requiring integration of PA instruments such as pressure transmitters, flow meters, temperature sensors, and valve positioners.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | HS810 |
| ABB Order Number | 3BDH000305R0101 |
| Manufacturer | ABB |
| Product Type | PROFIBUS DP/PA Head Station Module |
| Product Family | ABB LD 800P Linking Device |
| Main Function | DP-to-PA communication interface |
| Communication Protocol | PROFIBUS DP / PROFIBUS PA |
| PROFIBUS DP Speed | Up to 12 Mbit/s |
| PA Connection | Supports up to 5 Power Link Modules |
| Channel Configuration | Single channel |
| PA Device Capacity | Supports multiple PROFIBUS PA field devices |
| Transmission Mode | Transparent operation |
| Address Occupancy | Does not occupy PROFIBUS DP address |
| Baud Rate Detection | Automatic |
| Installation Area | Industrial automation cabinets |
| Mounting Method | Power Rail mounting |
| Certification | Suitable for Ex Zone 2 / Division 2 applications (system dependent) |
| Compatible System | ABB LD 800P PROFIBUS Linking Device |
Main Features and Advantages
PROFIBUS DP to PROFIBUS PA Gateway Function
The main function of ABB HS810 3BDH000305R0101 is to provide communication conversion between PROFIBUS DP control networks and PROFIBUS PA fieldbus devices.
In process automation systems, control systems typically use PROFIBUS DP for fast backbone communication, while field instruments use PROFIBUS PA for intrinsically safe process connections. HS810 bridges these two communication layers, enabling centralized monitoring and control of field devices.
High-Speed PROFIBUS DP Communication
HS810 3BDH000305R0101 supports PROFIBUS DP transmission rates up to 12 Mbit/s, allowing fast communication with PLC, DCS, and automation controllers. This provides efficient data exchange between the control level and field instrumentation.

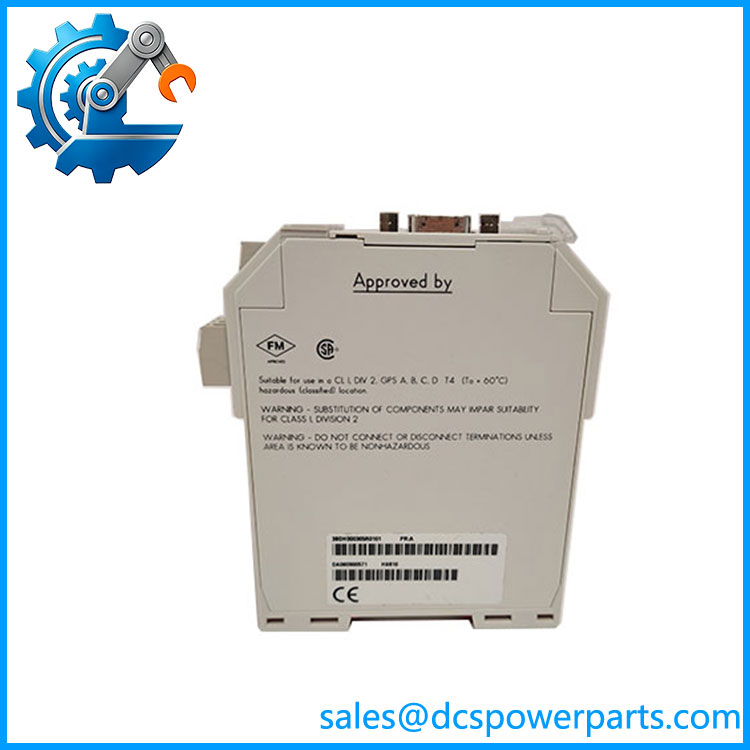

HS810
Single-Channel Head Station Design
The ABB HS810 is a single-channel head station capable of connecting multiple PA segments through Power Link Modules. It supports connection of up to five PROFIBUS PA Power Link Modules, providing flexible system expansion.
Transparent Data Communication
The module operates transparently between PROFIBUS DP and PROFIBUS PA networks. It does not require complex address mapping and does not occupy an additional PROFIBUS DP station address, simplifying system configuration.
Automatic Baud Rate Detection
The HS810 3BDH000305R0101 automatically detects the PROFIBUS DP communication speed, reducing commissioning effort and improving system installation efficiency.
Industrial Reliability
Designed for continuous operation in industrial environments, ABB HS810 provides stable communication performance under conditions involving electrical noise, temperature fluctuations, and long-term operation.
Modular LD 800P Architecture
The LD 800P system uses a modular design consisting of:
- HS810 Head Station
- PL810 Power Link Modules
- PROFIBUS PA field segments
- Power Rail accessories
This modular structure allows flexible expansion and easier maintenance.
Hazardous Area Support
The LD 800P family, including HS810 modules, is designed for industrial process applications and supports installation concepts involving hazardous environments such as Ex Zone 2 / Division 2 when used with approved system components.
Application Areas
Process Control Systems
ABB HS810 3BDH000305R0101 is widely used in process automation systems where PROFIBUS PA field instruments must be integrated into a PROFIBUS DP control network.
Typical devices include:
- Pressure transmitters
- Temperature transmitters
- Flow meters
- Level instruments
- Valve positioners
Chemical and Petrochemical Plants
Chemical production facilities rely on reliable field communication networks. HS810 enables integration of PA instrumentation into ABB DCS systems for monitoring and control of critical processes.
Oil and Gas Industry
Oil and gas facilities often use PROFIBUS PA devices in hazardous areas. The ABB LD 800P architecture with HS810 provides a reliable communication solution between field instruments and control systems.
Power Generation
Power plants use distributed instrumentation for:
- Boiler monitoring
- Turbine auxiliary systems
- Water treatment systems
- Process measurement
HS810 3BDH000305R0101 supports communication between field devices and plant control systems.
Water and Wastewater Treatment
The module can be applied in treatment plants requiring distributed measurement and control through PROFIBUS PA field instruments.
Industrial Automation Retrofit Projects
For existing ABB automation systems, HS810 3BDH000305R0101 is commonly used as a replacement or expansion component for LD 800P PROFIBUS communication networks.
Related Products
- ABB PL810 3BDH000311R0101 – PROFIBUS PA Power Link Module used with HS810.
- ABB HS820 3BDH000306R0101 – Two-channel Head Station version.
- ABB HS840 3BDH000307R0101 – Redundant multi-channel Head Station version.
- ABB LD 800P – PROFIBUS DP/PA Linking Device platform.
- ABB AC800M Controller – Process controller platform commonly integrated with ABB fieldbus systems.
- ABB Freelance DCS – Distributed control system supporting PROFIBUS communication.
