Description

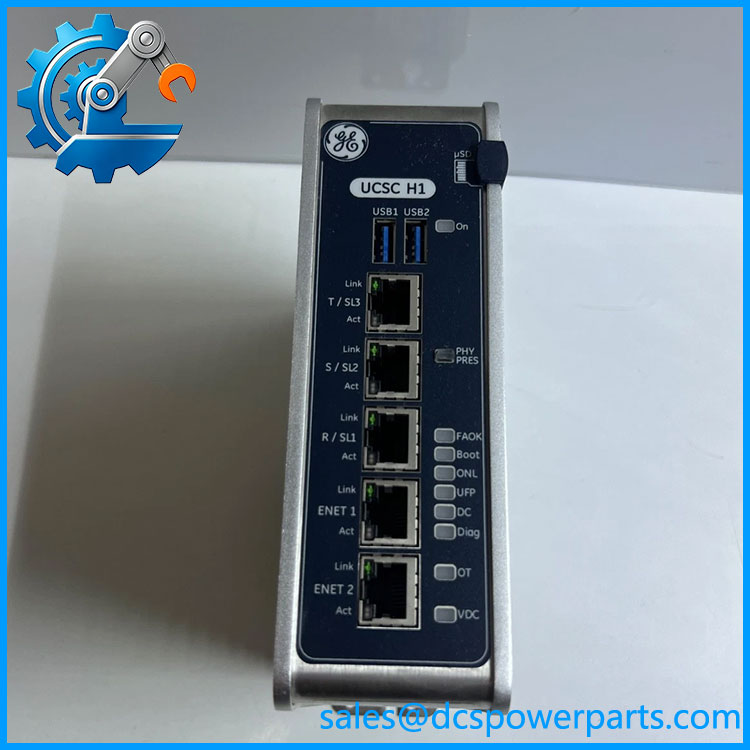

GE IS420UCSCH1B
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS420UCSCH1B |
| Manufacturer | General Electric / GE |
| Product Family | Mark VIe |
| Controller Type | UCSC Gateway Controller |
| CPU | Quad-core 1.2 GHz AMD G-Series |
| Memory | 2 GB DDR3-1066 ECC SDRAM |
| Solid-State Storage | 128 GB |
| Non-Volatile SRAM | 3,067 program variables; 338 forces; 64 totalizers |
| I/O Communication | IONet |
| Ethernet Communication | EGD / UDH and gateway communications |
| Redundancy | Simplex, Dual |
| Operating System | QNX Neutrino real-time operating environment |
| Cooling | Convection |
| Mounting | Base-mounted |
| Operating Temperature | -40 to 70°C |
| Storage Temperature | -40 to 85°C |
| Humidity | Up to 95%, non-condensing |
| Dimensions | Approx. 168 × 150 × 55 mm |
| Hazardous Area Capability | Refer to applicable GE installation and certification documentation |
GE’s current UCSC documentation specifically identifies IS420UCSCH1B as the Mark VIe Gateway Controller. It uses a quad-core 1.2 GHz AMD G-Series processor and supports 2 GB ECC memory and 128 GB solid-state storage.
Product Introduction
The GE IS420UCSCH1B is a UCSC controller used in the Mark VIe control platform, with a primary role in non-safety control and gateway applications. Unlike an I/O pack, it is a standalone processing unit that executes application logic and communicates with Mark VIe I/O through IONet. GE also documents its use as a gateway between control and supervisory or external communication functions.
For maintenance teams, the important distinction is that the IS420UCSCH1B is not the Mark VIeS safety controller. GE identifies the IS420UCSCS2A as the safety controller, while the IS420UCSCH1B is the non-safety Gateway Controller. That distinction matters when determining whether a spare is functionally appropriate for a particular control or safety architecture.
IS420UCSCH1B
Engineering Pain Point
The common replacement mistake with the is treating every UCSC-looking controller as interchangeable. The UCSC family includes different processor, gateway, safety, and embedded-network configurations, and the suffix is functionally significant. A replacement therefore needs to match the installed application’s ControlST/ToolboxST configuration, firmware expectations, network topology, and controller role—not merely the physical dimensions.
Typical Applications
- GE Mark VIe turbine control systems where the controller executes non-safety application logic.
- Gateway applications connecting Mark VIe control data with external systems and communication services.
- Non-SIF control loops associated with architectures that also contain a Mark VIeS safety system. GE specifically documents the H1B as capable of interfacing with the safety system through EGD on the UDH Ethernet connection.
- Industrial power-generation control requiring high-speed controller-to-I/O communication through IONet.
Technical Pitfalls to Avoid
- Do not substitute it for IS420UCSCS2A without an architecture review. The UCSCH1B is a non-safety controller, while UCSCS2A is the Mark VIeS safety controller.
- Verify the exact hardware revision. GE documentation and certification records list UCSCH1A, UCSCH1B, and UCSCH1C as separate models. The B suffix should be matched exactly when procuring a replacement.
- Check the controller configuration before commissioning. The UCSC is software-configured through the Mark Controls platform rather than through traditional hardware configuration jumpers. A replacement controller therefore requires attention to the application configuration and download process, not just physical installation.
- Do not confuse IONet with a conventional backplane. The UCSC is a standalone controller and communicates with Mark VIe I/O modules through onboard IONet interfaces. Physical compatibility alone does not establish network or application compatibility.
- Verify the installed memory/configuration against the procurement specification. GE’s UCSC technical document specifies 2 GB DDR3-1066 ECC and 128 GB SSD for the , while some secondary listings advertise different memory figures. For a critical replacement, the OEM documentation and actual nameplate/revision should take precedence.
Related Products
- IS420UCSCH1A — UCSC variant associated with embedded PROFINET gateway functionality; not automatically interchangeable with the H1B.
- IS420UCSCH1C — UCSC variant associated with embedded EtherCAT functionality; application compatibility must be checked before substitution.
- IS420UCSCS2A — Mark VIeS Safety Controller; safety-rated application role is fundamentally different from the H1B Gateway Controller.
- IS420UCECH1B — UCSC-based module incorporating an additional I/O port expansion board; it is not simply an H1B controller with a different label.
- IS420UCSBH3A — earlier UCSC controller variant using a different processor platform; verify system revision and application compatibility before considering it as a replacement.
- IS420UCSBH4A — another Mark VIe/MarkStat controller variant with different processor hardware; physical similarity does not establish drop-in compatibility.
Procurement check: For an replacement, match the complete part number, hardware revision, controller role, ControlST/ToolboxST compatibility, firmware, IONet topology, and installed application configuration. Do not approve a substitute solely because it is labeled “UCSC” or “Mark VIe.”
