Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE |
| Model | IS215VCMIH2CA / IS200VCMIH2CAA |
| Functional Acronym | VCMI |
| Product Type | VME Communications Interface Board |
| System Family | Mark VI Speedtronic |
| Main Function | VME bus master and I/O communication interface |
| Processor | Texas Instruments TMS320C32 DSP |
| IONet Ports | 3 × 10Base2 Ethernet ports |
| Serial Interface | 1 × RS-232C port |
| Communication Speed | 10 Mbps IONet |
| Board Format | 6U VME board |
| Backplane Interface | VME P1/P2 connectors |
| Diagnostic Indicators | Run, Fail, Status, TX/RX/CD LEDs |
| Mounting | GE Mark VI VME rack |
| Power Supply | +5 VDC backplane supply |
| Application | Turbine control communication and distributed I/O management |
Product Introduction
GE IS215VCMIH2CA IS200VCMIH2CAA Overview
The GE IS215VCMIH2CA IS200VCMIH2CAA is a VME Communications Interface board designed for the GE Mark VI Speedtronic turbine control platform. It provides the communication link between the Mark VI controller architecture, VME-based I/O boards, and distributed I/O networks through the IONet communication system.
The GE IS215VCMIH2CA operates as a VME bus master controller within the Mark VI rack. It manages data exchange between the control processor and installed I/O modules, allowing turbine control applications to receive field information and send output commands through the connected I/O architecture.
The GE IS200VCMIH2CAA version belongs to the same VCMI H2 family and is commonly referenced with the IS215VCMIH2CA assembly designation. The H2 configuration provides three IONet communication channels, making it suitable for Mark VI systems using redundant or triple-channel communication architectures.
The GE IS215VCMIH2CA IS200VCMIH2CAA includes a Texas Instruments TMS320C32 digital signal processor, VME interface circuitry, communication transceivers, diagnostic monitoring functions, and front-panel communication connections. The board provides three BNC-style IONet ports for communication with GE distributed I/O equipment and an RS-232 serial port used for maintenance and configuration functions.
The GE VCMI H2 board is commonly installed in gas turbine control systems where maintaining the original Mark VI hardware architecture is necessary due to application software dependencies, validated control configurations, and long plant operating lifecycles.
When replacing an , engineers should verify the exact hardware revision, Mark VI rack configuration, firmware compatibility, IONet topology, and connected I/O modules. The VCMI is a communication backbone component, so incorrect replacement or configuration mismatch can prevent the controller from communicating with field I/O.

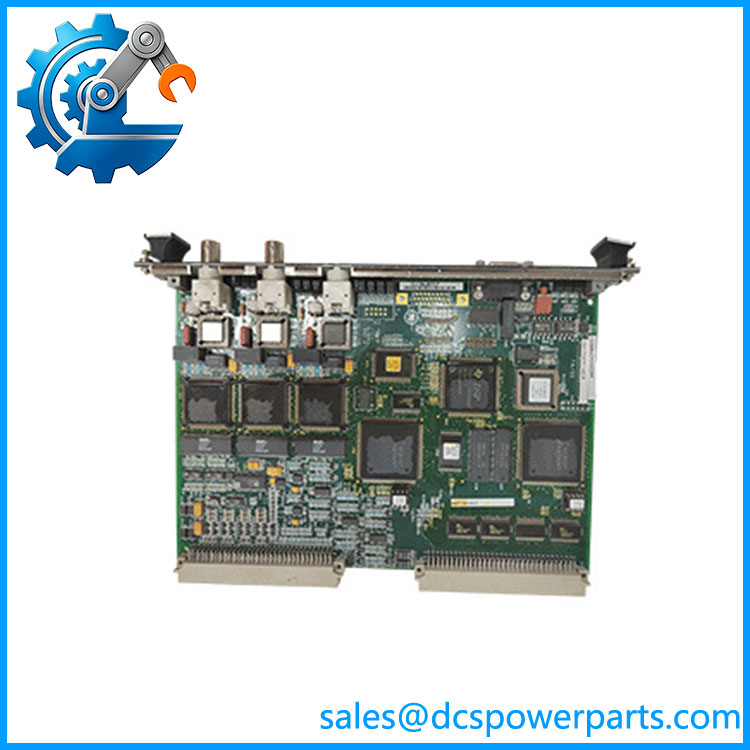

IS215VCMIH2CA IS200VCMIH2CAA
Application Scenarios & Field Considerations
Engineering Pain Point
Typical system issues involving the VCMI board include:
- Loss of I/O communication
- IONet communication alarms
- VME rack faults
- Controller-to-I/O data interruption
- Turbine startup sequence failures
The VCMI may be the source of the problem, but engineers should also inspect:
- IONet cables and connectors
- VME backplane connections
- Rack power supply stability
- I/O board health
- Controller configuration files
Recommended troubleshooting:
- Check VCMI LED diagnostic status
- Verify IONet link activity
- Confirm rack communication status
- Inspect cable connections
- Review Mark VI diagnostic logs
- Compare replacement board revision
Typical Applications
Gas Turbine Control Systems
Used for:
- Turbine sequencing
- Protection system communication
- Distributed I/O management
- Control signal exchange
Combined-Cycle Power Plants
Applied for:
- Gas turbine and steam turbine coordination
- Auxiliary equipment control
- Plant automation communication
Industrial Turbine Applications
Used for:
- Compressor control systems
- Mechanical drive turbines
- Process power generation
Legacy GE Mark VI Systems
Applied for:
- Long-life turbine installations
- Replacement of obsolete communication hardware
- Existing VME-based control cabinets
Technical Pitfalls to Avoid
1. Verify VCMI Revision
Before replacement, confirm:
- H1 vs H2 configuration
- Board revision code
- Firmware compatibility
- Mark VI application requirements
The H2 version provides different communication capability compared with other VCMI variants.
2. Check IONet Network Configuration
Verify:
- Number of IONet channels used
- Cable type
- Network topology
- Connected I/O racks
3. Inspect VME Rack Conditions
Check:
- Backplane contacts
- Rack power quality
- Slot assignment
- Cooling conditions
4. Preserve Existing Configuration
Before removal:
- Record rack layout
- Save control database
- Document communication settings
- Backup software configuration
