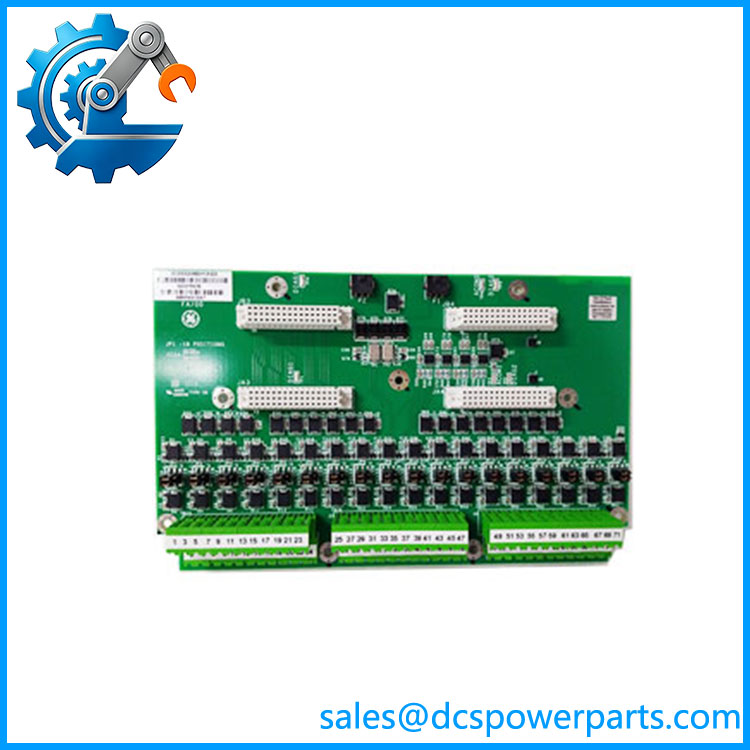

GE IS200SAMBH1ABA | SAMB Acoustic Monitoring Terminal Board | Mark VI Turbine Control
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS200SAMBH1ABA |
| Manufacturer | GE Industrial Systems |
| Platform | Mark VI Speedtronic |
| Functional Product | IS200SAMBH1A |
| Functional Acronym | SAMB |
| Board Function | Acoustic Monitoring Terminal Board |
| Functional Revision | H1A |
| Complete Suffix | BA |
| PCB Coating | Conformal |
| Field Interface | Terminal-board based acoustic signal interface |
| Application | Turbine acoustic monitoring |
| Mounting | DIN-style assembly |
The IS200SAMBH1A family is specifically identified as a GE Mark VI Acoustic Monitoring Terminal Board, with SAMB as its functional abbreviation. The board uses a conformal-coated PCB and belongs to the IS200 Mark VI hardware family.
Some secondary listings describe the assembly as having 18 acoustic inputs and 18 outputs, with 36 terminal positions associated with the two-wire field interface. That description is consistent across multiple secondary sources, but the exact signal ranges, excitation method, frequency bandwidth, and channel loading should be verified against the installed system documentation rather than treated as universal specifications.
Product Introduction
The GE IS200SAMBH1ABA is an acoustic monitoring terminal board used in GE Mark VI turbine-control systems. Its role is to provide the field-side interface for acoustic-monitoring signals, connecting external sensing circuits to the turbine monitoring architecture. The SAMB board is therefore an interface component rather than a standalone controller or conventional PLC I/O card.
The board is particularly relevant where turbine condition monitoring uses acoustic information to identify abnormal mechanical or process behavior. During replacement, the complete IS200SAMBH1ABA identification should be matched because the H1A functional revision and BA assembly suffix form part of the hardware configuration.
IS200SAMBH1ABA
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The main procurement risk is confusing the SAMB with other Mark VI terminal boards. Several online listings describe this exact part as a generic industrial PCB, SmartPack controller board, sensor interface, or unrelated I/O module. Those descriptions do not agree with the stronger SAMB identification.
Typical Applications
- Gas Turbine Acoustic Monitoring — field interface for acoustic sensing associated with turbine condition monitoring.
- Steam Turbine Monitoring — acquisition/interface of acoustic information used for equipment condition assessment.
- Rotating Equipment Diagnostics — acoustic signals can complement vibration and other machine-condition measurements.
- Mark VI Turbine Control Cabinets — installed as part of a configured GE Speedtronic monitoring architecture.
Technical Pitfalls to Avoid
- Do not treat IS200SAMBH1ABA as a generic digital I/O board.
The documented functional abbreviation is SAMB, and the functional description is Acoustic Monitoring Terminal Board. - Do not substitute a similar-looking Mark VI terminal board.
Mark VI contains numerous terminal boards with similar IS200 mechanical formats. The functional acronym, hardware revision, connector arrangement, and host-system wiring must match. - Be cautious with published channel and signal specifications.
Several secondary sources claim 18 inputs/18 outputs, 24 VDC supply, 10 Hz–20 kHz operation, or other detailed electrical values. These claims are not consistently supported across sources. Treat the cabinet drawings and GE documentation as the controlling engineering reference. - Check the complete assembly number.
The difference between IS200SAMBH1A and IS200SAMBH1ABA should not be dismissed as cosmetic. Record the complete board number, revision markings, connectors, jumpers, and any attached hardware before ordering.
Related Products
- IS200SAMBH1A — SAMB functional board designation; the base family behind the requested complete assembly.
- — complete H1A/BA acoustic monitoring terminal-board assembly.
- IS220UCSAH1A — Mark VIe acoustic monitoring processor associated with GE acoustic-monitoring architectures; not a direct replacement for the SAMB terminal board.
- IS200VAMB — acoustic-monitoring input hardware appearing in secondary documentation as part of the acoustic monitoring signal chain; verify exact system configuration before substitution.
- IS210SAMBH2AA — related SAMB-designated Mark VI hardware, but a different assembly and revision; it should not be assumed interchangeable with .
- IS200TVBAH2ACC — Mark VI vibration-related terminal hardware; different monitoring function and signal architecture.
- IS200STCIH6A — Mark VI contact-input terminal board; different field signal type and application.
Procurement Note
For a , specify the complete part number rather than ordering simply as “SAMB board” or “acoustic I/O module.” Confirm the marking, functional revision, connector layout, jumper positions, terminal arrangement, and host Mark VI cabinet configuration.
For surplus or previously installed hardware, inspection should include the terminal blocks, board coating, connector condition, jumper settings, mounting frame, and evidence of thermal or field-wiring damage. A board that powers or passes a basic continuity check is not automatically proven suitable for the installed acoustic-monitoring circuit.
Procurement identification: GE = Mark VI SAMB Acoustic Monitoring Terminal Board, H1A/BA assembly. Do not rely on conflicting reseller descriptions that classify the same part as a generic CPU, power board, or unrelated I/O module.
