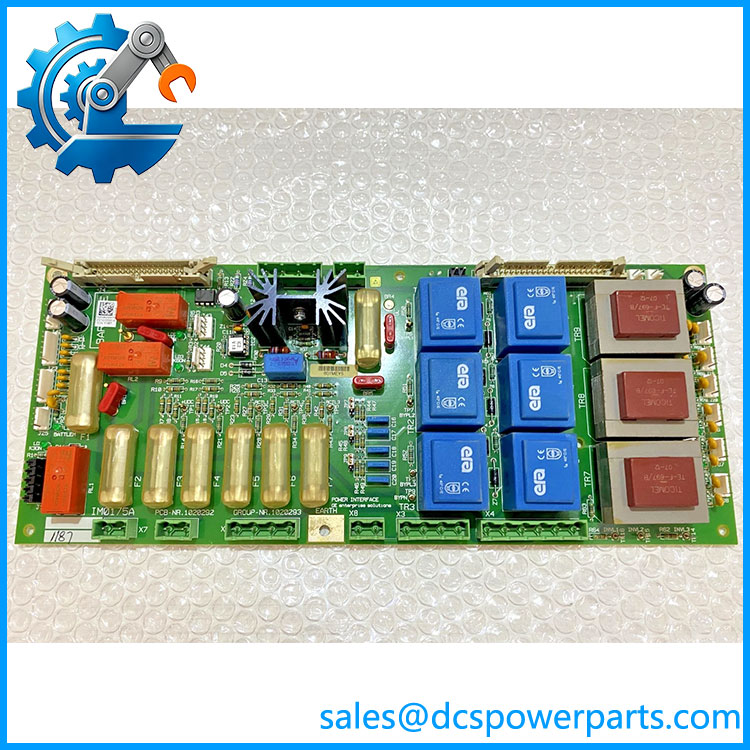

General Electric IM0175A Power Interface Board
Product Overview
The General Electric IM0175A is a GE Digital Energy Power Interface Board used as an internal interface component within legacy power-control equipment. Available component records identify the board as Group No. 1020293, with PCB No. 1020292. The same records associate the assembly with reference marking 801MEYA 1187. This is important for procurement because IM0175A is a board-level spare rather than a conventional PLC I/O module with a simple channel count and standardized field interface.
The practical role of the General Electric IM0175A is associated with power-interface circuitry, where board-level signals and power-related functions are handled inside the host GE Digital Energy equipment. Historical trade records also specifically describe IM0175A as a Power Interface Board, including references to item code 1020293.
For maintenance engineers, the distinction between an interface PCB and an externally wired I/O card matters. The IM0175A should not be treated as a standalone 24 VDC power supply or generic industrial interface module. Its exact electrical behavior depends on the host equipment, mating boards, connectors, and installed system architecture. Available public documentation is limited, so procurement should be based on the complete part identification and physical board revision rather than assumptions derived from similarly numbered GE boards.
Product Introduction
The difficult part of replacing a board such as the is usually identification, not installation. GE Digital Energy records associate the assembly with Group No. 1020293 and PCB No. 1020292, giving maintenance teams two useful identifiers when comparing an installed board with a spare.
For a legacy replacement, photograph the board label, PCB number, connectors, component side, and revision markings before removing the original. Do not substitute a visually similar GE interface board simply because the connector layout appears close.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | |
| Manufacturer / Brand | General Electric / GE Digital Energy |
| Product Type | Power Interface Board |
| Group Number | 1020293 |
| PCB Number | 1020292 |
| Associated Reference | 801MEYA 1187 |
| Board-Level Function | Power interface / internal equipment interface |
| Installation | Internal host-equipment PCB assembly |
| Field I/O Channel Count | Not established from reliable public documentation |
| Rated Input Voltage | Not reliably verified |
| Rated Output Voltage | Not reliably verified |
| Rated Current | Not reliably verified |
| Communication Protocol | Not established |
| Operating Temperature | Not reliably verified |
| Firmware | Not applicable as a standalone specification / not verified |
| Status | Legacy GE Digital Energy hardware |
Public parts records consistently identify the as a Power Interface Board, but the available documentation does not provide enough authoritative information to safely populate detailed electrical ratings.
Major Features / Practical Advantages
Power-interface function
The belongs to the board-level power-interface category rather than conventional PLC I/O. Its job is associated with internal power-interface circuitry within the host equipment. This means its compatibility is determined by the complete equipment architecture, not simply by electrical values printed in a generic component database.
General Electric IM0175A
Multiple identification numbers
Three identifiers are particularly useful during spare-parts verification:
- — primary GE board model.
- 1020293 — documented Group No.
- 1020292 — documented PCB No.
The available inventory records explicitly connect these identifiers, which provides a better basis for cross-checking a replacement than the designation alone.
Board-level replacement
Unlike a standard DIN-rail module, the is intended to be installed inside its associated equipment. Replacement therefore involves connector alignment, mechanical mounting, board revision, adjacent PCB compatibility, and the host equipment’s maintenance procedure.
This is one of those cases where a correct-looking spare can still be the wrong spare.
Legacy equipment support
Historical trade records show the being shipped as a Power Interface Board, including records identifying item code 1020293. This supports its classification as a legacy industrial power-interface component rather than a recently introduced automation module.
No unsupported electrical claims
Detailed public specifications for the are limited. Consequently, values such as nominal voltage, maximum current, efficiency, operating temperature, and protection rating should be obtained from the host-equipment manual or original GE documentation rather than copied from unrelated GE boards.
That restraint is important for an actual replacement project.
Related Products
- GE IM0182D 1020634 — GE Digital Energy driver and power-capacitor board. Its function differs from the power-interface board.
- GE IM0196C/1 1021088 — GE Digital Energy PCB card from the same general legacy board inventory, but not a verified substitute for .
- GE Digital Energy power-interface assemblies — Related internal power-electronics boards should be matched by complete group and PCB numbers rather than general board appearance.
- GE Enterprise Solutions 1020293 assembly — The Group No. 1020293 identification is useful when checking historical GE Enterprise/Digital Energy documentation and inventory records.
- GE 1020292 PCB assembly — The PCB number is the board-level identifier associated with and should be checked against the installed board marking.
FAQ
What is the GE ?
The is a GE Digital Energy Power Interface Board. Available records associate it with Group No. 1020293 and PCB No. 1020292.
Is the a PLC I/O module?
No reliable documentation supports classifying it as a conventional PLC digital or analog I/O module. It is identified as a Power Interface Board, meaning its function is associated with internal power/equipment interfaces.
What is PCB number 1020292?
1020292 is documented as the PCB number associated with the assembly, while 1020293 is identified as its Group No. Both numbers are useful when verifying an actual replacement board.
Can I replace an with another GE power board?
Not without verification. GE Digital Energy used numerous board-level assemblies with different electrical and mechanical functions. The complete model, Group No., PCB No., revision, connectors, and host-equipment application should be checked before substitution.
Can I hot-swap the ?
Do not assume that it can be hot-swapped. It is an internal PCB assembly, and safe replacement depends on the host equipment’s power-isolation and maintenance procedure. De-energize and isolate the associated equipment according to its approved service procedure unless the equipment documentation explicitly provides another method.
Does the have firmware?
The is identified as a board-level Power Interface PCB rather than a standalone programmable controller. A firmware revision should therefore not be inferred from the part number. If the host equipment contains programmable logic or firmware associated with the board, that information must be checked at the system level.
Does the provide a specific DC output voltage?
A reliable public source was not found establishing a standalone rated output voltage for the . It would be unsafe to assign a generic 24 VDC or other rating to this board without the applicable GE equipment documentation.
How should I verify an replacement?
Compare the original and replacement boards using , Group No. 1020293, PCB No. 1020292, physical connector arrangement, revision markings, and the host-equipment application. A clear photograph of the complete nameplate is particularly useful when dealing with legacy GE Digital Energy hardware.
Procurement Note
For General Electric procurement, treat the board as a legacy equipment-specific spare, not as a generic industrial power module. The strongest available identification links to Group No. 1020293 and PCB No. 1020292; those numbers should appear in the purchasing and inspection records.
Before accepting a replacement, compare the actual board against the removed unit. Check the designation, Group No., PCB No., revision markings, connector arrangement, mounting points, and visible component population. If the supplier can provide photographs, request both sides of the board and a close-up of the identification label.
For new-surplus or refurbished stock, ask whether the board has been electrically tested in its original host equipment. A clean PCB and correct label establish identity, but they do not by themselves establish functional condition.
Because detailed electrical specifications could not be reliably verified from the available documentation, do not use an assumed voltage, current, temperature rating, or protection specification for engineering approval. Obtain those values from the applicable GE Digital Energy equipment manual or the original equipment drawing before commissioning.
