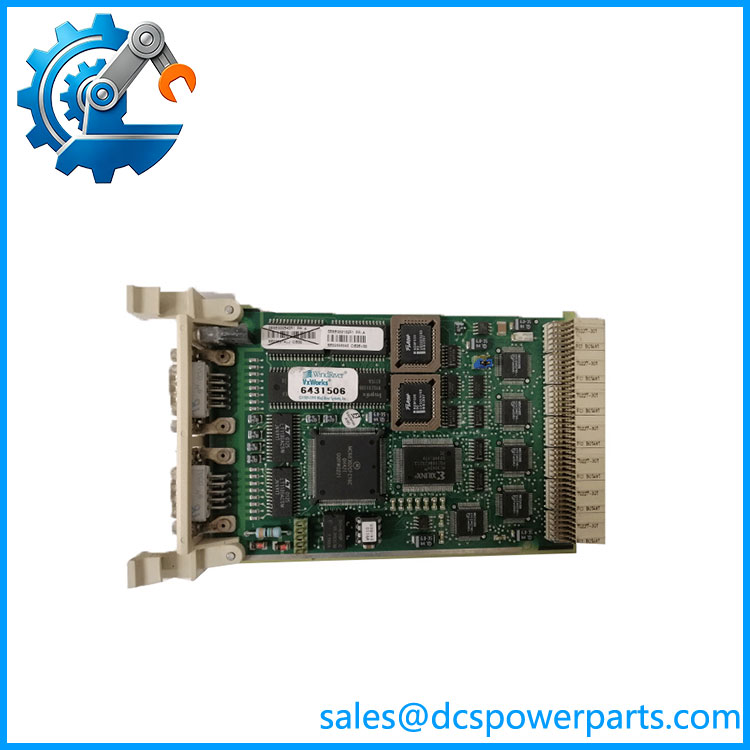

ABB CI535V26 3BSE022161R1 Product Description
Product Overview
ABB CI535V26 3BSE022161R1 is an ABB Advant OCS communication interface / RTU protocol module designed for remote communication and telecontrol applications. ABB’s product documentation identifies the exact part number 3BSE022161R1 with the type designation CI535V26 and the catalog description “RTU protocol IEC870-5-101 Unbal.”
The module is associated with the ABB Advant Controller 450 / Advant OCS environment and provides support for the IEC 870-5-101 unbalanced transmission protocol, a protocol widely used for telecontrol, remote terminal unit (RTU), substation and power-distribution communication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | CI535V26 |
| Ordering Number | 3BSE022161R1 |
| Product Type | Communication / RTU Protocol Module |
| ABB System | Advant OCS |
| Compatible Controller | ABB Advant Controller 450 family |
| Protocol | IEC 870-5-101 |
| Transmission Mode | Unbalanced |
| Main Function | RTU / telecontrol communication |
| Application | Remote monitoring, control and data transmission |
| Product Category | Communication Module |
| Software/Protocol Option | RTU protocol |
| Installation | ABB control-system rack |
| RoHS Status | Specific legacy-system exemption documented by ABB |
ABB’s product detail specifically confirms IEC870-5-101 Unbalanced as the function of this part, and the Advant Controller 450 product guide lists CI535V26 / 3BSE022161R1 under the Telecontrol and SPA Bus options.
Important Specification Note
Some reseller pages incorrectly describe this unit as a generic Ethernet/IP, Modbus or power module and publish unrelated voltage/current specifications. Those claims conflict with the ABB-specific product documentation. For CI535V26 3BSE022161R1, the most reliable identification is RTU protocol IEC 870-5-101 Unbalanced communication module.
Main Features and Advantages
IEC 870-5-101 Communication
The primary function of CI535V26 is support for IEC 870-5-101, allowing an ABB Advant control system to communicate with compatible remote terminal units and telecontrol equipment. This makes it particularly suitable for electrical-utility and remote-monitoring applications.
CI535V26
Unbalanced Transmission Mode
The module specifically supports the unbalanced mode of IEC 870-5-101. This communication method is useful for master/RTU architectures in which the controlling station manages communication with remote stations.
Telecontrol Integration
ABB documentation places CI535V26 within the Telecontrol and SPA Bus section of the Advant Controller 450 platform. It therefore provides an interface between the plant control system and external telecontrol/RTU infrastructure.
Remote Data Acquisition
The module can support communication of remote status, measurements and control information between field/remote equipment and the central ABB automation system. This is valuable for geographically distributed electrical equipment.
Legacy ABB System Compatibility
3BSE022161R1 is an important identification number for maintaining older ABB Advant installations. The CI535 family includes several protocol-specific variants, so the complete part number should be matched when sourcing a replacement.
Application Fields
Power Substations
The CI535V26 is particularly suitable for electrical substations, where IEC 870-5-101 is used for remote monitoring and control. It can provide communication between the ABB control system and RTUs or telecontrol equipment.
Power Distribution Networks
In electrical-distribution applications, the module can transmit measurements, alarms, breaker status and control commands between remote substations and a central control system.
Power Generation
The module can be used in legacy ABB automation architectures for generator and plant auxiliary monitoring, particularly where remote equipment must exchange data with the plant control system.
Oil & Gas and Process Plants
Where ABB Advant systems incorporate remote equipment or utility substations, CI535V26 can provide a standardized telecontrol communication interface for collecting remote status and measurement information.
Industrial Remote Monitoring
The module is suitable for distributed industrial installations where remote devices need to communicate with an ABB supervisory/control system using IEC 870-5-101.
Related Products
- ABB CI535V23 3BSE022160R1 — RTU protocol RP570 Slave module.
- ABB CI535V24 3BSE022158R1 — RP570 Master communication protocol module.
- ABB CI535V29 3BSE022159R1 — RP571 Master communication protocol module.
- ABB CI535V30 3BSE022162R1 — SPA Server / SPA Bus protocol module.
- ABB YC572 3BSE022222R3 — HPC563 RTU, RCS and SPA server support software module for the Advant Controller 450 environment.
- ABB Advant Controller 450 — Host control platform with which the CI535V26 telecontrol option is documented.
Product Identification
Manufacturer: ABB
Model: CI535V26
Ordering Number: 3BSE022161R1
Product Type: RTU Communication / Protocol Module
System: ABB Advant OCS / Advant Controller 450
Protocol: IEC 870-5-101 Unbalanced
Primary Application: Telecontrol, RTU communication and remote monitoring
