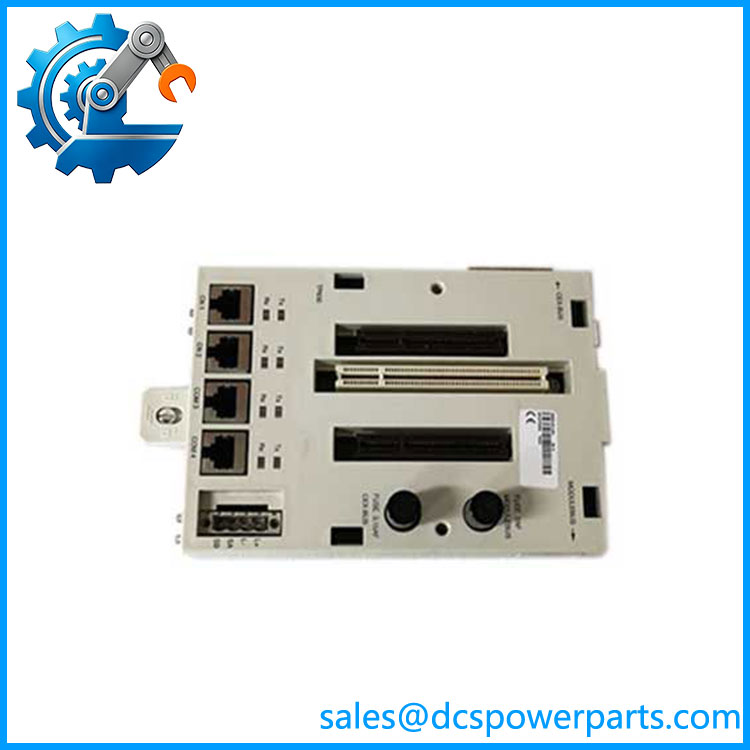

ABB TP830 3BSE018114R1 | AC 800M CPU Mounting Baseplate with CEX-Bus Interface

Description

Key Technical Specifications

Product Introduction

ABB TP830 3BSE018114R1 Product Introduction

ABB TP830 3BSE018114R1 is a processor module baseplate designed for ABB AC 800M controller systems used in System 800xA automation environments. It provides the physical mounting point and electrical connection platform for PM8xx processor modules, including CPU power connections, communication interfaces, and controller expansion buses.

The ABB TP830 3BSE018114R1 is commonly retained during controller maintenance because the baseplate is integrated into the installed cabinet wiring and expansion architecture. Replacement requires checking the CPU model, CEX-Bus modules, ModuleBus connections, and cabinet wiring arrangement rather than only matching the part number.

TP830 3BSE018114R1

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A plant controller fails during a scheduled maintenance window. The CPU module is replaced, but the system still does not communicate correctly with remote I/O or communication interfaces.

The issue is often not the processor itself. The baseplate carries critical electrical connections between the CPU, expansion buses, and cabinet wiring. A damaged connector, incorrect mounting, or incompatible CPU combination can keep the controller offline.

Typical Applications

• Oil & Gas – AC 800M controller installations for compressor stations, process skids, and refinery control units.
• Power Generation – Turbine auxiliary systems, boiler controls, and plant balance-of-system automation.
• Chemical Processing – Batch control systems, reactor monitoring, and process instrumentation networks.
• Water Treatment – Pump control systems, filtration process automation, and distributed control applications.

Technical Pitfalls to Avoid

1. Confirm CPU Compatibility Before Replacement
   The TP830 supports specific ABB PM8xx processor families. Do not assume every AC 800M CPU uses the same baseplate configuration.
2. Inspect Bus Connectors Carefully
   CEX-Bus and ModuleBus connections are sensitive points during cabinet maintenance. Misalignment or damaged contacts can create communication faults.
3. Document Controller Configuration First
   Record communication module placement, expansion connections, and controller settings before removing the baseplate assembly.

Related Products

• ABB PM856 3BSE018104R1
  AC 800M processor kit commonly supplied with the TP830 baseplate. Used for medium-performance controller applications.
• ABB PM864A 3BSE018161R1
  Higher-performance AC 800M CPU module. Frequently paired with in System 800xA controller installations.
• ABB PM865K01 3BSE031151R1
  Processor kit including CPU and associated controller hardware for larger automation applications.
• ABB PM866K01 3BSE050198R1
  Advanced AC 800M processor package for applications requiring increased controller resources.
• ABB TB850 3BSC950193R1
  CEX-Bus terminator used with AC 800M processor assemblies.
• ABB TB807 3BSE008538R1
  ModuleBus terminator used for local I/O expansion connections.
• ABB CI854AK01 3BSE030220R1
  PROFIBUS communication interface module connected through the AC 800M CEX-Bus.
• ABB CI860K01 3BSE032444R1
  Communication interface module for additional fieldbus and system integration requirements.
• ABB TP830K01 Processor Unit Assembly
  Complete controller kit variants that include the baseplate with processor and accessories.
