Description

ABB S-123H 3BHB030479R0512

Key Technical Specifications

The available documentation does not provide enough reliable evidence to assign a standalone input voltage, current rating, semiconductor device rating, or cooling specification specifically to 3BHB030479R0512. Some secondary listings describe it as a water-cooled phase module and associate it with a 12 MVA ACS6000 configuration, but those claims should be verified against the drive’s complete nameplate and ABB configuration before being used as procurement specifications.

Product Introduction

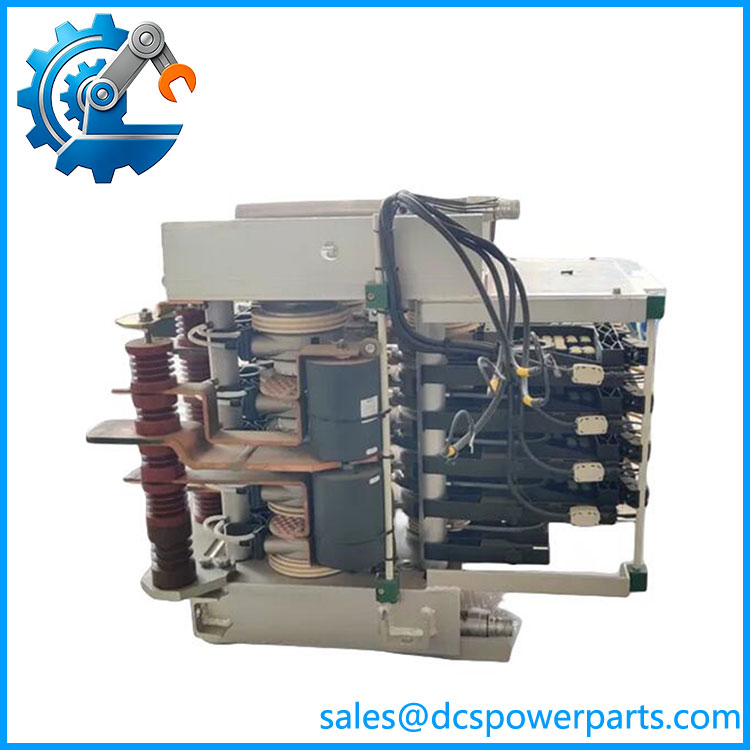

The ABB S-123H 3BHB030479R0512 is a large power-conversion module used within ABB’s ACS6000 medium-voltage drive architecture. It is identified by ABB type designation PHASE S-123H and cataloged as a phase module rather than a PLC, DCS I/O card, or conventional low-voltage VFD control board.

In an ACS6000 installation, the phase module forms part of the high-power converter assembly that interfaces the drive’s electrical power circuit with the motor. The architecture uses modular cabinet units for functions such as active rectification, input filtering, inverter operation, and DC-bus arrangements. The exact role and rating of an individual S-123H therefore depend on the complete drive configuration.

S-123H 3BHB030479R0512

Engineering Pain Point

The biggest replacement risk is identifying S-123H only by its model name and assuming every S-123H is interchangeable. The part number 3BHB030479R0512 has been associated with the newer S-123H configuration, while older product records identify 3BHB030479R0112 and 3BHB030479R0412 as replaced product IDs. A replacement should therefore be matched against the installed drive’s exact phase-module generation, hardware revision, cabinet arrangement, cooling connections, and power rating.

Typical Applications

• Large industrial motor drives — high-power induction or synchronous motor applications within the platform.
• Metallurgical equipment — large rolling, processing, and production machinery requiring medium-voltage variable-speed drives.
• Large compressor systems — high-power motor speed control where the architecture is installed.
• Power-intensive process plants — applications requiring modular medium-voltage AC drive power conversion.

Technical Pitfalls to Avoid

1. Do not treat S-123H as a PLC module.
   The ABB catalog designation is PHASE MODULE. It is part of a high-power drive system and requires the corresponding power architecture.
2. Match the complete ABB product number.
   S-123H alone is insufficient for procurement. Specify 3BHB030479R0512 and compare the installed module’s nameplate and hardware markings.
3. Check older part-number history.
   Available product records identify 3BHB030479R0112 and 3BHB030479R0412 as older S-123H product IDs associated with the newer 3BHB030479R0512. Do not assume the change is mechanically or electrically transparent without ABB documentation for the specific drive.
4. Verify cooling connections.
   Secondary sources describe S-123H as a water-cooled phase module, but the exact cooling arrangement should be confirmed from the installed cabinet. Cooling hose/fitting compatibility is a physical replacement issue, not something that should be inferred from the model name alone.
5. Do not infer the drive rating from the module alone.
   A claimed 12 MVA / 3.3 kV / 630 A configuration appears in secondary records, but those values should be treated as drive-configuration-specific, not as universal ratings for every S-123H 3BHB030479R0512.
6. Inspect the complete power path before commissioning.
   If a phase module has failed, check associated semiconductor components, gate-drive circuitry, DC-link condition, cooling system, protection circuits, and the drive control system. Replacing the phase module without determining the original failure mechanism can result in another module failure.

Related Products

• ABB S-073N — 3BHB009884R0021 — another phase-module designation with a different power-system configuration; not an automatic substitute for S-123H.
• ABB S-093H — 3BHB030478R0309 — related phase-module family member with a different configuration.
• ABB S-093S — 3BHB030475R0309 — another phase-module variant.
• ABB S-113N — 3BHB018008R0001 — related ABB high-power phase-module designation; configuration differs from S-123H.
• ABB S-113H — 3BHB018008R0003 — another phase-module variant appearing in ABB drive component records.
• ABB 5SHY4045L0001 — 3BHB018162R0001 — IGCT-related power semiconductor component used in ABB high-power drive systems; it is not a replacement for the complete S-123H phase module.
• — complete medium-voltage drive platform in which the S-123H phase-module architecture is used.

Procurement Note

For an exact replacement, specify ABB S-123H / 3BHB030479R0512 and provide the drive rating, cabinet configuration, installed module revision, cooling arrangement, and original phase-module nameplate data.

One important correction to several online descriptions: 3BHB030479R0512 should be treated as a complete phase module, not as a generic “voltage regulation control module” or ordinary gate-interface board. ABB-related product records explicitly identify its catalog description as PHASE S-123H; PHASE MODULE.

For procurement, I would not approve a substitute based solely on the S-123H designation. The 3BHB030479R0512 hardware revision and the complete drive configuration should be matched first.
