Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | PFEA111-65 |
| Order Number | 3BSE050091R65 |
| Product Type | Tension Measurement Electronics |
| System Family | ABB Web Tension Measurement System |
| Input Channels | 2 load cell inputs |
| Supported Sensors | ABB Pressductor tension load cells |
| Measurement Functions | A, B, A+B, A-B |
| Output Type | Voltage and current output |
| Filtering | Adjustable digital filtering |
| Display | Integrated tension value display |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Protection Class | IP65 enclosure version |
| Communication | Analog signal interface |
| Mounting | Industrial cabinet / field installation |
| Application | Web tension measurement and control |
| Replacement Reference | 3BSE028140R65 (previous ID) |
Product Introduction
ABB PFEA111-65 3BSE050091R65 Overview
The ABB PFEA111-65 3BSE050091R65 is a tension measurement electronics unit designed for ABB web tension control systems. It provides the signal processing interface between ABB Pressductor load cells and industrial automation systems used in continuous material processing applications. The unit receives force measurement signals from tension sensors, processes the data, and provides stable tension values for monitoring and control functions.
The ABB PFEA111-65 3BSE050091R65 supports two load cell inputs and can display individual sensor values as well as calculated tension values including A+B and A-B. Adjustable filtering functions allow engineers to adapt signal response according to machine speed, mechanical characteristics, and process requirements.
The ABB PFEA111-65 is commonly installed in web handling equipment where maintaining consistent material tension is critical. Typical applications include paper machines, coating lines, printing presses, steel strip processing lines, and converting machinery. In these systems, accurate tension feedback helps prevent problems such as material stretching, wrinkles, uneven winding, or product quality variation.
The ABB PFEA111-65 3BSE050091R65 is a measurement electronics device rather than a standalone motion controller. Successful replacement requires verification of the connected load cell type, mechanical mounting arrangement, calibration parameters, output scaling, and existing machine control configuration.

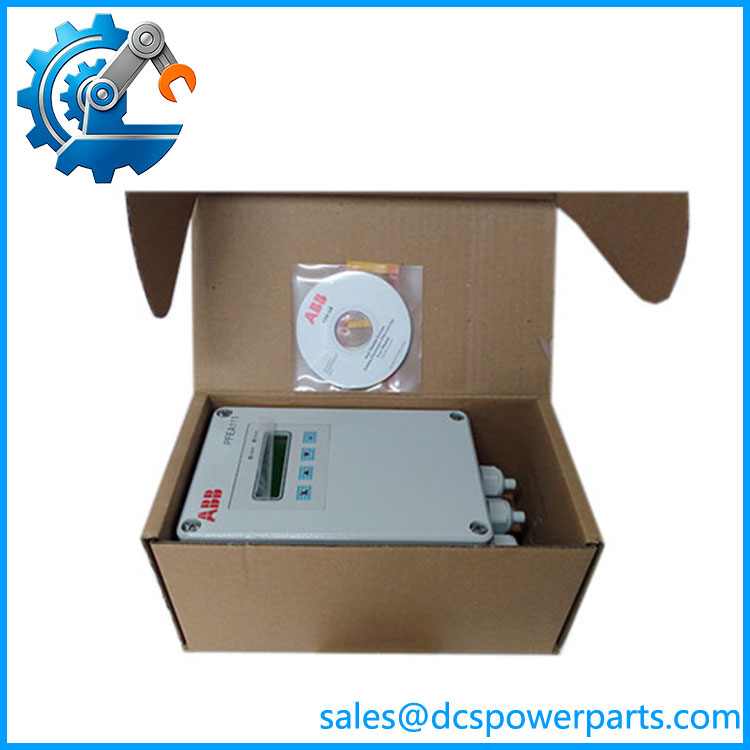

PFEA111-65
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A web processing line experiences unstable tension values, excessive dancer movement, poor winding quality, or inconsistent material tracking. The tension electronics may appear faulty, but many issues originate from sensor installation, mechanical alignment, or calibration.
Recommended troubleshooting steps:
- Check load cell wiring integrity
- Verify sensor excitation and signal levels
- Confirm calibration values
- Review filtering parameters
- Inspect mechanical mounting
- Compare A, B, A+B, and A-B readings
The ABB 3BSE050091R65 processes measurement data, but the complete tension measurement chain determines control quality.
Typical Applications
Paper and Pulp Production
Used for:
- Web tension monitoring
- Roll-to-roll processing
- Winding control
- Coating line regulation
Printing and Packaging Machinery
Applied for:
- Film tension control
- Paper feed systems
- Printing registration stability
- Rewinding applications
Metal Processing Lines
Used for:
- Steel strip handling
- Aluminum processing
- Continuous rolling systems
Converting Equipment
Applied for:
- Slitting machines
- Laminating systems
- Web guiding applications
Technical Pitfalls to Avoid
1. Verify Load Cell Compatibility
Before replacement, confirm:
- Load cell model
- Sensor range
- Cable wiring
- Mechanical installation
ABB Pressductor load cells have specific electrical characteristics and calibration requirements.
2. Check Calibration Data
Important parameters include:
- Zero calibration
- Span calibration
- Engineering units
- Measurement range
Incorrect calibration can produce stable but inaccurate tension readings.
3. Review Filtering Settings
Excessive filtering may cause:
- Slow response
- Control delay
Insufficient filtering may cause:
- Signal fluctuation
- Unstable control loops
4. Verify Output Scaling
Check:
- Analog output range
- PLC/DCS input configuration
- Signal scaling parameters
The measurement unit and control system must use matching engineering values.
