ABB PDD405A101 | Original 3BHE041626R0101 Module

Description

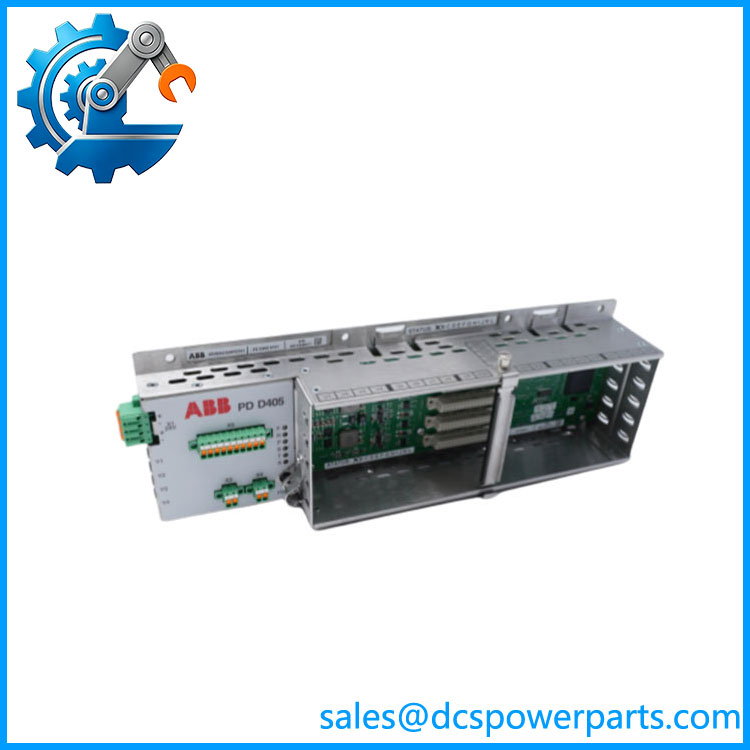

ABB PDD405A101 3BHE041626R0101 | PD D405 A101 Control Hub

Product Overview

The ABB PDD405A101 3BHE041626R0101 is identified by ABB catalog references as the PD D405 A101 control hub. The order number and type designation are consistently associated across available product records, making the PDD405A101 / 3BHE041626R0101 combination the critical identification point for procurement.

In an industrial power-control installation, a control hub should not be confused with a conventional PLC CPU or standard remote I/O card. Its role is associated with the internal control architecture of ABB power-control equipment, where coordinated processing, communication between control elements, and deterministic exchange of control information are more important than simply providing general-purpose field I/O. Some secondary references associate the PDD405A101 with ABB high-power drive, excitation, and power-electronics control platforms, although the exact application must be confirmed from the installed equipment documentation.

For a PDD405A101 3BHE041626R0101 replacement, exact part-number matching is particularly important. The available public sources do not provide enough authoritative information to safely specify every electrical interface, firmware revision, internal processor architecture, or communication protocol for this exact variant. That is a procurement issue worth taking seriously. A generic “ABB control module” description is not adequate when the module is part of a power-conversion or excitation control system.

From a maintenance perspective, the main advantage is preserving the existing ABB control architecture without forcing an unnecessary redesign of the surrounding control hardware. Before installation, engineers should compare the replacement’s nameplate, hardware revision, connector arrangement, cabinet location, associated control boards, and system firmware against the failed unit.

Product Introduction — Non-Templated

Power-electronic control systems leave little room for casual substitution. The ABB PDD405A101 is cataloged specifically as a PD D405 A101 control hub, so the complete order number 3BHE041626R0101 should remain attached to every procurement and maintenance record.

For legacy equipment, this is primarily a replacement and maintenance component rather than a generic PLC module. Supplier references associate it with ABB power-control architectures, but exact system compatibility should be established from the installed equipment documentation before a DCS system upgrade, drive-control replacement, or excitation-system repair.

Key Technical Specifications

Specification caution: Several secondary websites publish detailed values such as 24 VDC supply, Ethernet/PROFIBUS/Modbus, 16 analog inputs, 16 digital inputs, 8 analog outputs, and 8 digital outputs. These figures are not sufficiently corroborated for the exact order number, so they should not be used as a replacement specification without checking ABB documentation or the installed unit.

PDD405A101 3BHE041626R0101

Major Features / Advantages

Exact ABB control-hub identification

The strongest verified characteristic of this component is its catalog identity. ABB references identify 3BHE041626R0101 as PD D405 A101 control hub. That distinction is more useful during procurement than a generic description such as “PLC controller” or “power control board.”

Intended for specialized control architectures

The is associated with ABB’s power-control hardware rather than ordinary plant-floor remote I/O. Secondary technical references place the part within high-power drive and excitation-related control applications. This makes system-level compatibility more important than physical fit alone.

Suitable for legacy equipment support

When an installed ABB control platform remains serviceable but a control-hub component has failed, sourcing the exact replacement can be considerably less disruptive than modifying the surrounding cabinet architecture. Existing control wiring, associated boards, application configuration, and commissioning procedures can potentially remain within the original design envelope.

That benefit depends on an exact match. It should not be interpreted as evidence that every PDD-series component is interchangeable.

Practical procurement verification

For a critical spare, request clear photographs of the front and rear of the actual , including the ABB identification label and hardware revision. Compare connector locations and board markings with the failed module.

For used or surplus equipment, ask for evidence that the unit has been electrically tested. A clean enclosure or intact label does not establish functional condition.

Related Products

• ABB PDD205A0121 — PDD-series control hardware associated with ABB power-control applications; different model and should not be treated as a direct substitute.
• ABB PDD500A101 — Another PDD-series control component; useful when reviewing the wider PDD hardware family, but exact system compatibility must be checked.
• ABB PPD513 — AC 800PEC high-performance programmable controller used in power-electronics and excitation applications; controller architecture differs from the .
• ABB UNITROL 6000 — ABB excitation-system platform in which power-control hardware may form part of the overall excitation architecture; complete system compatibility must be established.
• ABB AC 800PEC — High-speed programmable control platform for power electronics; a system-level reference rather than a direct replacement for the .
• ABB ACS6000 — Medium-voltage drive platform associated by secondary references with PDD-series control hardware; the exact hardware configuration varies by drive.
• ABB PDD500A101 3BHE037649R0101 — Related PDD-series hardware with a different order number; verify application and hardware revision before considering it for replacement use.

FAQ

What is ABB used for?

ABB identifies / 3BHE041626R0101 as a PD D405 A101 control hub. It is associated with specialized ABB control architectures rather than being a generic PLC input/output module.

Is a PLC CPU?

It should not be described simply as a conventional PLC CPU. Available catalog information identifies it specifically as a control hub. Its exact processing and interface role depends on the host ABB system in which it is installed.

Can I use PDD500A101 instead of ?

Do not assume interchangeability. Both belong to the broader PDD family, but they have different ABB order numbers and may serve different positions within the control architecture. Verify the original equipment documentation before approving a substitution.

Does support Ethernet, PROFIBUS, or Modbus?

Public supplier pages make differing claims about communications. I would not specify any of those protocols for the exact without confirming the relevant ABB technical documentation or the actual installed configuration.

Can I hot-swap the ?

Do not assume hot replacement. This is a system-level control component, and removing it may affect control power, backplane communication, gate-control logic, or other dependent equipment. Follow the ABB equipment maintenance procedure and place the associated system in the required safe state before replacement.

Does this module retain the control program?

Do not assume that the itself contains the complete application program. Power-control systems can distribute functions across multiple processor, control, interface, and memory elements. Before replacing the hardware, document the installed configuration and determine where the application and parameter data are stored.

What should I verify before purchasing a ?

At minimum, verify:

1. type designation.
2. 3BHE041626R0101 ABB order number.
3. Hardware and revision markings.
4. Host ABB equipment model and system configuration.
5. Connector and board layout.
6. Associated control boards and interface hardware.
7. Firmware requirements.
8. Existing application/parameter backup.
9. Actual test status of the replacement.
10. Whether the unit is new surplus, refurbished, or previously installed.

For this part, exact catalog-number verification should take priority over a long generic specification sheet. The public information confirms the control-hub identity, but several detailed electrical and communications specifications published by secondary sellers are inconsistent and should be treated as unverified until matched to ABB documentation.
