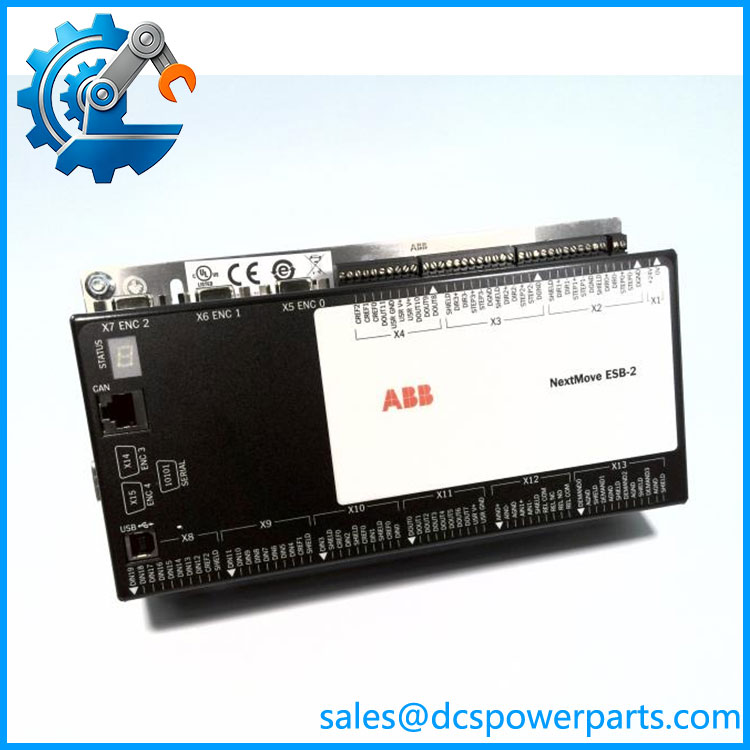

ABB NSB204-502W 3AXD50000032687 NextMove ESB-2 Motion Controller
Product Overview
When a machine has several coordinated servo and stepper movements, pushing all motion calculations through a general-purpose PLC can create unnecessary architecture and timing constraints. The ABB NSB204-502W is designed specifically for that problem. It belongs to the NextMove ESB-2 family of compact panel-mount motion controllers and provides coordinated control for up to eight axes: four closed-loop axes and four open-loop step/direction axes. ABB also specifies integrated communications and I/O for connection to PLCs, distributed devices, drives, and operator equipment.
The important procurement distinction is the complete NSB204-502W / 3AXD50000032687 designation. ABB’s catalog differentiates it from closely related NSB202/203/205 variants according to axis count, serial interface, and stepper-output type. The NSB204-502W is the 8-axis RS485/USB differential-stepper version. It supports MINT programming, CANopen communications, integrated digital/analog I/O, and high-speed registration functions, making it suitable for machine-level coordinated motion rather than conventional PLC-only sequencing.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Series | NextMove ESB-2 |
| Product Model | NSB204-502W |
| ABB Product ID | 3AXD50000032687 |
| Product Type | Multi-axis motion controller |
| Maximum Axis Capacity | 8 axes |
| Closed-Loop Axes | 4 |
| Open-Loop Axes | 4 |
| Closed-Loop Function | Servo/vector motion control |
| Open-Loop Function | Step/direction control |
| Stepper Output | Differential |
| Serial Interface | RS485 |
| USB | Integrated |
| CANopen | Integrated |
| Programming | MINT multitasking motion programming |
| Digital/Analog I/O | Integrated |
| Registration Inputs | High-speed registration inputs |
| Mounting | Panel mount |
| Controller Architecture | Stand-alone motion controller |
| CANopen DS402 | Supported by applicable firmware variant |
| Power Supply | Verify against the applicable hardware manual/nameplate |
| Operating Temperature | Verify against the applicable NSB204-502W installation documentation |
ABB’s catalog is particularly useful here because it distinguishes from NSB205-502W: both are eight-axis RS485/USB versions, but NSB204 uses differential stepper outputs, while NSB205 uses single-ended stepper outputs. That is an important wiring-level distinction.
Application Scenarios & Field Considerations
Multi-Axis Machine Control
The controller is suited to machines requiring coordinated positioning across multiple servo and stepper axes. ABB describes the NextMove ESB-2 as providing four closed-loop axes and four open-loop step/direction axes, with a maximum of eight axes.
ABB NSB204-502W 3AXD50000032687
Packaging and Material Handling
The combination of motion programming, registration inputs, electronic gearing/camming functions, and integrated I/O makes the ESB-2 architecture applicable to packaging, material handling, converting, and other machine-control applications where axis coordination matters more than simple start/stop sequencing.
Legacy Motion-System Replacement
For an existing machine using the , the full ABB part number is important. The neighboring NSB202-502W is a seven-axis configuration, while NSB205-502W is the eight-axis single-ended-stepper variant. A replacement should therefore be selected from the complete model rather than from the generic “NextMove ESB-2” name.
PLC and Distributed I/O Integration
The can communicate with PLCs and distributed equipment through USB, serial communication, and CANopen. ABB documentation also describes a firmware variant that allows operation as a CANopen DS402 master, supporting control of up to 64 axes in the applicable architecture.
Related Products
- NSB202-502W — NextMove , 7-axis version with RS485/USB and differential stepper outputs.
- NSB203-502W — 7-axis RS485/USB version with single-ended stepper outputs.
- — 8-axis version with RS232/USB and differential stepper outputs.
- NSB205-502W — 8-axis RS485/USB version with single-ended stepper outputs.
- NSB205-501W — 8-axis RS232/USB version with single-ended stepper outputs.
- NextMove PCI-2 — PCI-based ABB/Baldor motion controller supporting up to eight axes, with a different host architecture.
- NextMove e100 — Ethernet-based motion-controller family for applications requiring Ethernet Powerlink and broader networked motion architecture.
These are related products, not automatic drop-in replacements.
Engineer’s Guide — Field Pitfalls to Avoid
1. Check the stepper-output type.
This is probably the easiest mistake to make. uses differential stepper outputs, while NSB205 variants use single-ended outputs. The machine wiring must match the controller variant.
2. Do not confuse seven-axis and eight-axis versions.
NSB202/203 are seven-axis configurations; /205 are eight-axis configurations. The last two digits of the model family are not cosmetic.
3. Match RS232 versus .
The -502W designation identifies the /USB communication variant, whereas -501W versions use RS232/USB. Replacing one with the other can require changes to the machine’s communication wiring and configuration.
4. Preserve the motion program.
The can operate as a stand-alone motion controller using MINT programming. Before replacing a controller, back up the motion program, parameters, axis configuration, registration settings, and CANopen configuration.
5. Verify the encoder arrangement.
Closed-loop servo control and open-loop step/direction control are different electrical architectures. Confirm which machine axes use encoder feedback before commissioning a replacement.
6. Do not treat CANopen capability as proof of universal drive compatibility.
The controller supports CANopen, and an applicable firmware variant can operate as a DS402 master. The actual drive profile, node configuration, PDO mapping, and firmware must still match the machine application.
7. Keep the complete part number.
For procurement, specify / 3AXD50000032687. “NextMove ” alone is insufficient because multiple hardware configurations exist.
FAQ
W ABB ?
It is an ABB NextMove multi-axis motion controller. Thific configuration provides up to eight axes, consisting of four closed-loop axes and four open-loop step/direction axes.
What is ABB part number 3AXD50000032687?
3AXD50000032687 is the ABB product identification associated with . ABB’s own product page lists the two identifiers together.
How man can control?
The NextMove architecture supports a maximum of eight axes: four closed-loop servo/vector axes and four open-loop step/direction axes.
What is the differenween and NSB205-502W?
Both are eight-axis /USB versions. The key distinction is the stepper output: uses differential outputs, while NSB205-502W uses single-ended outputs.
What communicadoes support?
ABB documents , USB, and CANopen communications for the NextMove family. An applicable firmware variant can also operate as a CANopen DS402 master.
What programming software is used?
The NextMove is designed around ABB/Baldor’s MINT motion-control programming environment. ABB documentation also references Mint Workbench for setup, commissioning, monitoring, and motion-program development.
Is a PLC?
It is better classified as a dedicated multi-axis motion controller, not a conventional PLC CPU. It can communicate with PLCs and distributed I/O, but its primary role is coordinated machine motion.
What should be verified before purchasing a replacement?
Match , ABB part number 3AXD50000032687, differential stepper outputs, /USB communication configuration, axis count, firmware, motion program, encoder arrangement, and CANopen configuration. For a used unit, verify actual inventory condition and functional test status rather than relying on a stock photograph.
