ABB 3BHB024711R0020L PBA E10 A01: 6K100 | ACS2000 Phase Module

Description

Product Overview

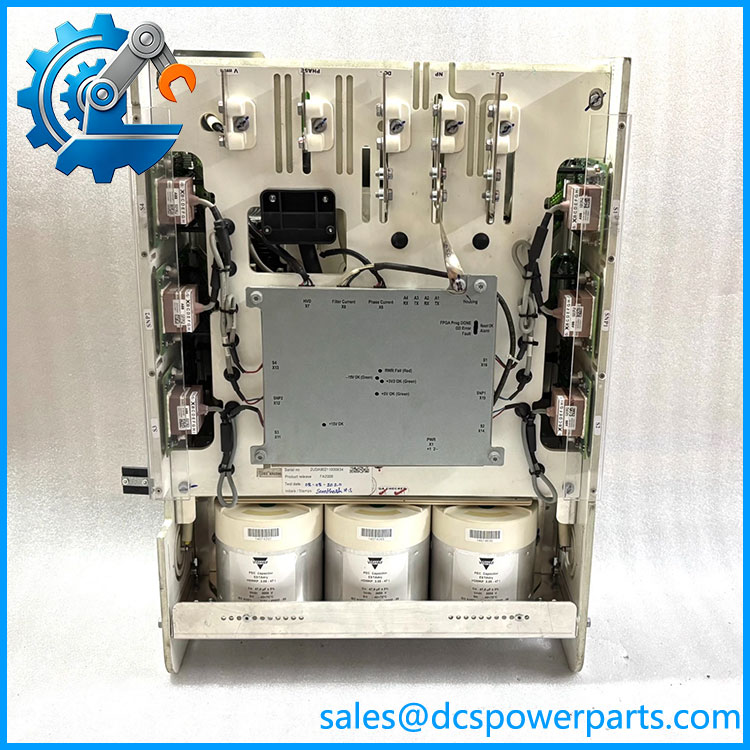

The ABB PBAE10A01 3BHB024711R0020 is a phase module used in the ABB ACS2000 medium-voltage drive platform. ABB identifies the unit as “PBA E10 A01: 6k100; PHASE MODULE 3X47UF.” This is power-conversion hardware, not a conventional PLC processor or low-voltage I/O card. Within the drive cabinet, the phase module forms part of the high-power switching and energy-storage assembly responsible for converting controlled electrical power for large motor applications. Available technical documentation identifies the module with a three-capacitor, 47 µF configuration.

From a maintenance standpoint, the ABB PBAE10A01 3BHB024711R0020 needs to be treated as a complete drive-power assembly rather than a simple plug-in spare. Its reported net weight is approximately 37 kg, and replacement requires attention to mechanical mounting, power connections, cooling arrangements, and the exact ACS2000 configuration. That matters during a forced outage: a physically similar phase module can still require interface or commissioning work before the drive can return to service. Published replacement information lists several mechanically identical alternatives, including 3BHB034326R0010, 2UBA004079R0010, and 3BHB024711R0010, but the application conditions determine whether an additional interface cable is required.

One point deserves particular attention. Documentation associated with this part states that the phase module can contain software or firmware that may need programming on site by a qualified field-service engineer. For replacement planning, therefore, the part number alone is not enough; record the existing module identification, drive configuration, firmware requirements, and any installed sine-output filter or Active Front End arrangement before approving a substitute.

Product Introduction (Non-Templated)

A failed phase module in a medium-voltage drive is not a component-level nuisance; it can take an entire motor train offline. The ABB PBAE10A01 3BHB024711R0020 belongs to the ACS2000 power-conversion architecture and incorporates 3 × 47 µF capacitance in the phase-module assembly.

For an ACS2000 legacy replacement, mechanical interchangeability must be checked alongside firmware, drive topology, and interface requirements. In particular, replacement of certain earlier part numbers can require interface cable 3BHB036579R0001 when a sine output filter or AFE configuration is present.

Key Technical Specifications

The 3 × 47 µF configuration and approximately 37 kg net weight are documented in available product information.

PBAE10A01 6k100 3BHB024711R0020

Related Products

• 3BHB024711R0010 — An earlier/alternative identification associated with the PBA E10 A01 phase-module family. When replacing this version, check whether the has a sine output filter or AFE configuration because an interface cable may be required.
• 3BHB034326R0010 — Listed as a replacement identification for the 3BHB024711R0020 phase module. Mechanical interchangeability should still be verified against the installed drive configuration.
• 2UBA004079R0010 — Another listed replacement identification for the same phase-module family. Useful when cross-referencing legacy spare-part records.
• 3BHB024711R0001 — Older identification associated with the PBAE10A01 phase-module family. Check the complete drive configuration before using it as a direct spare.
• EXC3BHB024711R0020 — Cross-reference identification appearing in replacement documentation for the phase-module assembly. Confirm the exact ordering code on the installed drive before procurement.
• 3BHB036579R0001 — Interface cable specifically identified for certain replacements involving an earlier phase-module version where the drive uses a sine output filter or AFE configuration.
• — The associated medium-voltage drive platform. The phase module should be evaluated as part of the complete power-stage architecture rather than as an independent controller.

Frequently Asked Questions

Is ABB PBAE10A01 3BHB024711R0020 a PLC or DCS control module?

No. It is a power phase module for the ABB medium-voltage drive. Its function is associated with the drive’s high-power conversion stage, rather than PLC sequencing, DCS I/O acquisition, or supervisory communication.

That distinction is important when building a spare-parts list. A phase-module failure can stop the motor drive even though the associated PLC or DCS controller remains fully operational.

Can I replace 3BHB024711R0010 with 3BHB024711R0020?

Potentially, but do not approve the substitution from the part number alone.

Check:

1. drive configuration.
2. Existing phase-module identification.
3. AFE or standard input arrangement.
4. Presence of a sine output filter.
5. Interface-cable requirement.
6. Module firmware/software requirements.

Available replacement information identifies these modules as mechanically identical in the relevant replacement family, while also specifying an additional cable requirement for certain AFE or sine-filter applications.

Does PBAE10A01 support firmware programming?

This is one of the more important procurement checks. Available technical information states that the phase module contains software/firmware that may require on-site programming, with the specific requirement dependent on the drive installation.

For a planned replacement, capture the existing module’s identification and firmware information before removing it. If the replacement is being held as an emergency spare, confirm in advance whether field programming is required.

Will replacing the phase module erase my PLC or DCS logic?

The phase module is part of the drive power architecture, so replacing it is not equivalent to replacing a PLC CPU containing the plant’s control program.

The real commissioning concern is different: the replacement phase module may require configuration or firmware-related work before the drive can operate correctly. Protect the existing drive configuration and document the replacement procedure rather than assuming a simple hardware swap.

Can I hot-swap the ?

This should not be treated as a hot-swappable module. It is a high-power medium-voltage drive component with substantial electrical and mechanical hazards.

Replacement should follow the site’s approved isolation, discharge, grounding, access, and commissioning procedures. The approximately 37 kg module weight also means mechanical handling needs to be planned rather than treated as routine card replacement.

How do I verify a New Surplus 3BHB024711R0020 before installation?

For a critical spare, verify the physical identification first:

• ABB product identification and complete part number
• designation
• Revision information
• Connector and terminal condition
• Capacitor/module condition
• Packaging and storage condition
• Evidence of prior installation
• Firmware or configuration requirements

“New surplus” describes the supply condition; it does not by itself establish functional compatibility with your specific cabinet.

What should be covered by the warranty?

For this type of medium-voltage power component, the warranty should explicitly state the coverage period, DOA procedure, testing scope, and remedy for a failed replacement unit. A generic spare-parts warranty is less useful than documented acceptance criteria.

For procurement, I would require the supplied 3BHB024711R0020 to be verified against the ordered part number and physical condition before installation, with any required firmware/interface work identified before the shutdown window.
