Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | 07KT97 |
| Order Number | GJR5253000R4270 |
| Product Type | PLC Central Unit / CPU Module |
| Controller Family | Advant Controller 31 (AC31) |
| System Platform | ABB Advant OCS / AC31 |
| CPU Function | Central processing and control execution |
| Supply Voltage | 24 VDC |
| User Program Memory | 480 kB |
| User Data Memory | 256 kB Flash EPROM |
| Digital Inputs | 24 channels, electrically isolated |
| Digital Outputs | 16 transistor outputs, electrically isolated |
| Digital I/O | 8 channels |
| Analog Inputs | 8 channels |
| Analog Outputs | 4 channels |
| Communication | Ethernet |
| Programming Software | AC1131 |
| Mounting | DIN rail / control cabinet installation |
| Application | Industrial PLC automation |
Product Introduction

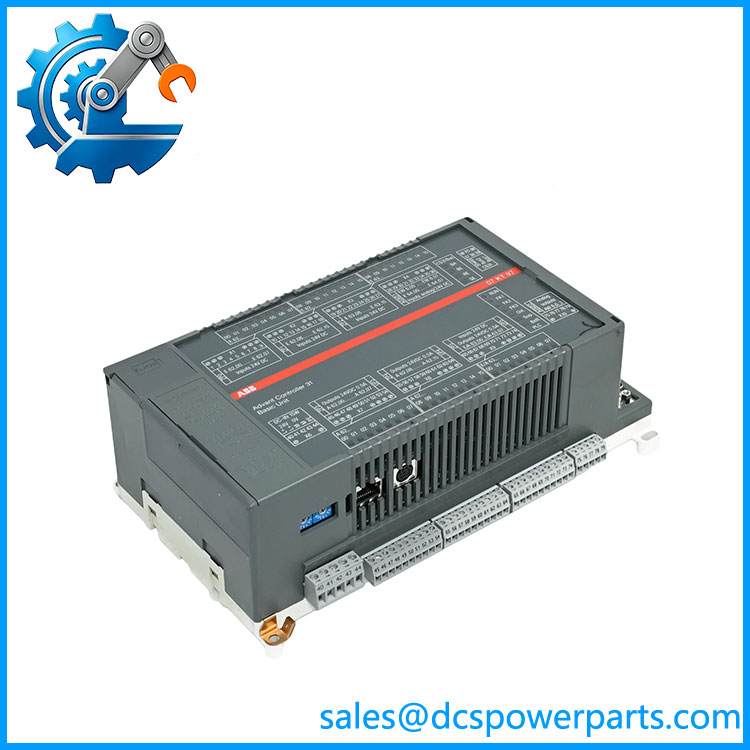

ABB 07KT97 GJR5253000R4270 Overview
The ABB 07KT97 GJR5253000R4270 is a central processing unit from the ABB Advant Controller 31 (AC31) PLC family. It is designed to provide control processing, integrated signal handling, and communication functions for compact industrial automation applications. The module combines PLC CPU functions with onboard I/O resources, allowing machine builders and plant engineers to implement control solutions without requiring a separate external I/O rack for smaller systems.
The ABB 07KT97 PLC Central Unit executes user application programs developed through the AC1131 engineering environment. The controller provides memory resources for storing application logic, process data, and system parameters, making it suitable for long-running automation tasks where stable operation and predictable control behavior are required.
The ABB GJR5253000R4270 07KT97-ETH version includes Ethernet communication capability, allowing integration with programming computers, supervisory systems, and other automation equipment. This Ethernet-equipped variant was commonly selected for applications requiring easier system connectivity compared with earlier serial-only AC31 controllers.
The ABB 07KT97 GJR5253000R4270 includes integrated digital and analog I/O channels, reducing cabinet space requirements for distributed machine control applications. The built-in I/O supports direct connection to field sensors, switches, actuators, and process signals depending on the application design.
The ABB Advant Controller 31 07KT97 remains widely encountered in legacy automation installations where equipment owners continue operating proven AC31-based control systems. Replacement requires careful verification because PLC CPUs are directly linked to application software, communication settings, and I/O configuration.
Before replacing a GJR5253000R4270, engineers should verify the CPU revision, user program backup, AC1131 project files, Ethernet configuration, connected I/O wiring, and communication parameters. A hardware replacement without the correct application program and configuration data will not restore normal machine operation.
07KT97 GJR5253000R4270
Application Scenarios & Field Considerations
Engineering Pain Point
Typical issues involving ABB 07KT97 controllers include:
- CPU fault indications
- Loss of Ethernet communication
- Program memory errors
- Unexpected PLC restart
- I/O communication problems
The controller may be the source of the fault, but engineers should also inspect:
- 24 VDC power quality
- Backup battery condition
- Field wiring
- Communication cables
- Application software integrity
Recommended troubleshooting steps:
- Check CPU diagnostic indicators
- Verify supply voltage stability
- Upload and compare PLC application program
- Confirm Ethernet settings
- Inspect I/O channel diagnostics
- Review controller fault history
The operates as the central control element of an AC31 system, so fault analysis should include the complete PLC architecture.
Typical Applications
Machine Automation
Used for:
- Packaging machines
- Material handling systems
- Assembly equipment
- Production machinery
Process Control Systems
Applied for:
- Small process skids
- Pump control systems
- Utility automation
Building and Infrastructure Automation
Used for:
- HVAC control
- Water systems
- Facility monitoring
Industrial Retrofit Projects
Applied for:
- Maintaining existing installations
- Extending equipment service life
- Replacing failed PLC CPUs
Technical Pitfalls to Avoid
1. Verify CPU Variant
Confirm:
- 07KT97 model
- order number
- Ethernet version
- Hardware revision
Different 07KT97 variants may have different communication options.
2. Backup Application Software
Before replacement:
- Save AC1131 project files
- Record PLC parameters
- Backup communication settings
- Document I/O configuration
3. Check Integrated I/O Usage
Verify:
- Digital input assignments
- Output channel mapping
- Analog scaling parameters
- Field terminal wiring
4. Validate Communication Setup
Confirm:
- Ethernet addressing
- Supervisory system communication
- Programming connection settings
