Description
Product Overview

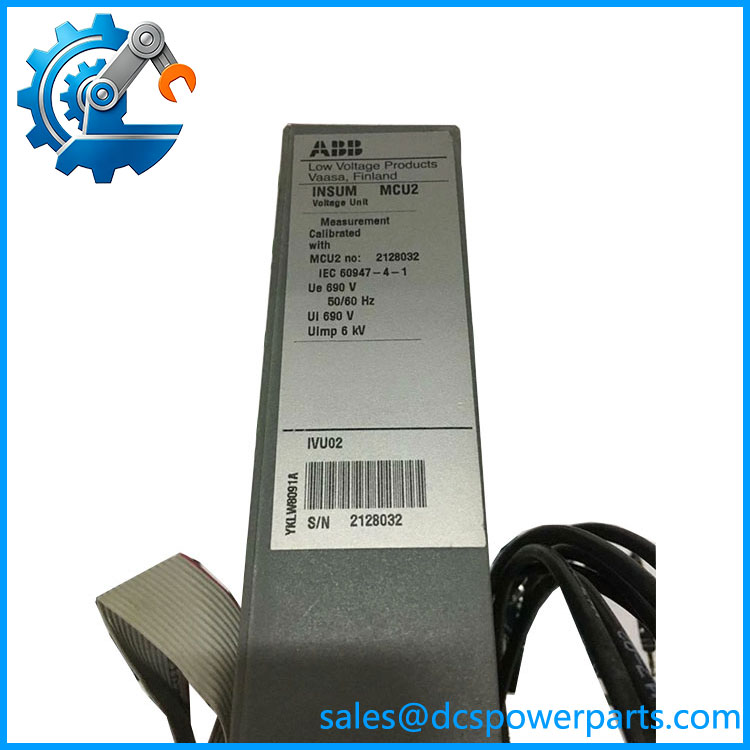

ABB INSUM MCU2 IVU02 is a Voltage Unit (IVU02) designed for the ABB INSUM (Integrated System for User-optimized Motor Management) intelligent motor management system. It is an essential expansion component for the INSUM MCU2 Motor Control Unit, providing three-phase voltage measurement and auxiliary power supply functions required for advanced motor protection, monitoring, and control applications. The ABB INSUM MCU2 IVU02 works together with MCU2 main units to enable voltage-based protection functions, allowing accurate monitoring of motor operating conditions within ABB MNS low-voltage switchgear systems.
The ABB INSUM MCU2 IVU02 is specifically developed for applications where comprehensive motor management is required beyond traditional overload protection. By measuring motor supply voltage parameters, the unit enables functions such as phase failure detection, voltage monitoring, voltage imbalance protection, and enhanced motor diagnostic capabilities. The voltage measurement data collected by MCU2 IVU02 is processed by the associated MCU2 controller, allowing operators and automation systems to obtain detailed information about motor operating status and electrical conditions.
As part of the ABB INSUM architecture, ABB INSUM MCU2 IVU02 provides a reliable interface between low-voltage motor feeders and higher-level automation systems such as DCS, PLC, and SCADA platforms. The modular design allows integration into ABB MNS switchgear assemblies while maintaining high system flexibility and maintainability. With accurate measurement capability, robust industrial construction, and compatibility with intelligent motor protection functions, MCU2 IVU02 is widely used in process industries, power plants, water treatment facilities, and large industrial automation systems requiring dependable motor control and protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MCU2 IVU02 |
| Manufacturer | ABB |
| Product Type | Voltage Unit / Motor Management Expansion Module |
| System Platform | ABB INSUM Motor Management System |
| Compatible Controller | ABB INSUM MCU2 Motor Control Unit |
| Main Function | Three-phase voltage measurement and auxiliary power supply support |
| Voltage Measurement Range | 380–690 VAC |
| Rated Frequency | 50/60 Hz |
| Measured System Type | Three-phase AC motor supply networks |
| Auxiliary Supply | 24 VDC (depending on MCU2 configuration) |
| Protection Functions Supported | Voltage monitoring, phase failure, voltage imbalance detection |
| Installation Type | Side-mounted with MCU2 unit in MNS switchgear |
| Communication | Via connected INSUM MCU2 unit |
| Protection Class | IP20 |
| Operating Temperature | -5°C to +55°C |
| Rated Insulation Voltage | Up to 690 VAC |
| Weight | Approximately 0.47 kg |
INSUM
Main Features and Advantages
ABB INSUM MCU2 IVU02 provides advanced electrical measurement capability for intelligent motor management applications by extending the functionality of the standard MCU2 Motor Control Unit. Unlike conventional motor protection devices that rely mainly on current measurement, MCU2 IVU02 adds voltage measurement capability, enabling a more complete evaluation of motor operating conditions. This allows the INSUM system to identify electrical abnormalities more accurately and provide improved protection for motors and connected equipment.
One of the key advantages of ABB INSUM MCU2 IVU02 is its ability to support advanced voltage-based protection functions. By continuously monitoring three-phase supply voltage conditions, the module helps detect problems such as phase loss, phase sequence errors, and voltage imbalance. These functions are particularly valuable in industrial environments where motor reliability directly affects production continuity and equipment safety.
The ABB INSUM MCU2 IVU02 is designed as a dedicated companion module for MCU2 controllers, ensuring accurate measurement performance through optimized hardware compatibility. The voltage unit automatically communicates its presence and configuration information to the MCU2 system, reducing commissioning complexity and improving system reliability.
Another important advantage of MCU2 IVU02 is its integration within ABB MNS switchgear solutions. The compact modular structure allows efficient installation inside motor feeder compartments while maintaining accessibility for maintenance personnel. The combination of MCU2 processing capability and IVU02 voltage measurement creates a complete intelligent motor management solution capable of providing protection, control, monitoring, and diagnostic information.
ABB INSUM MCU2 IVU02 also contributes to predictive maintenance strategies by providing additional electrical condition data. When integrated with plant automation systems, the collected information can help engineers analyze motor performance, identify developing electrical issues, and reduce unexpected downtime. Its robust design and compatibility with industrial environments make it a reliable component for demanding motor control applications.
Applications
ABB INSUM MCU2 IVU02 is widely used in industrial motor management systems where accurate electrical monitoring and advanced motor protection are required. It is primarily installed together with ABB INSUM MCU2 controllers inside MNS low-voltage switchgear assemblies used in large industrial plants.
In oil and gas facilities, ABB INSUM MCU2 IVU02 supports protection and monitoring of critical motors driving pumps, compressors, fans, and auxiliary equipment. By providing voltage measurement data, the system can identify abnormal electrical conditions before they lead to motor damage or production interruptions.
In chemical and petrochemical plants, MCU2 IVU02 is applied in motor control centers where continuous operation and equipment availability are essential. The module supports reliable operation of process motors by enabling advanced protection functions and improving fault diagnosis capabilities.
Power generation facilities use ABB INSUM MCU2 IVU02 for monitoring motors associated with cooling systems, pumps, ventilation equipment, and auxiliary systems. Accurate voltage monitoring helps maintain stable operation and supports preventive maintenance programs.
The module is also suitable for water treatment plants, mining operations, marine facilities, and manufacturing industries where large numbers of electric motors require centralized monitoring and protection. When combined with ABB INSUM communication gateways, MCU2 IVU02 enables integration of motor data into DCS, PLC, and SCADA systems, improving plant visibility and operational efficiency.
For system integrators and maintenance teams, ABB INSUM MCU2 IVU02 provides a proven solution for upgrading motor feeders with intelligent monitoring and protection functions while maintaining compatibility with existing ABB MNS installations.
