Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric |
| Model | DS3800NB1F1B1A |
| Series | Speedtronic Mark IV DS3800 |
| Product Type | Bridge Interface / Control Interface Board |
| Board Family | DS3800NB Series |
| Application | Turbine control and interface processing |
| System Compatibility | GE Mark IV Speedtronic |
| Signal Interface | Internal control system interface |
| Board Construction | Industrial PCB assembly |
| Installation | Mark IV control rack |
| Mounting Type | Rack-mounted plug-in board |
| Operating Environment | Industrial turbine control cabinet |
| Typical Equipment | Gas turbines and steam turbine control systems |
Product Introduction

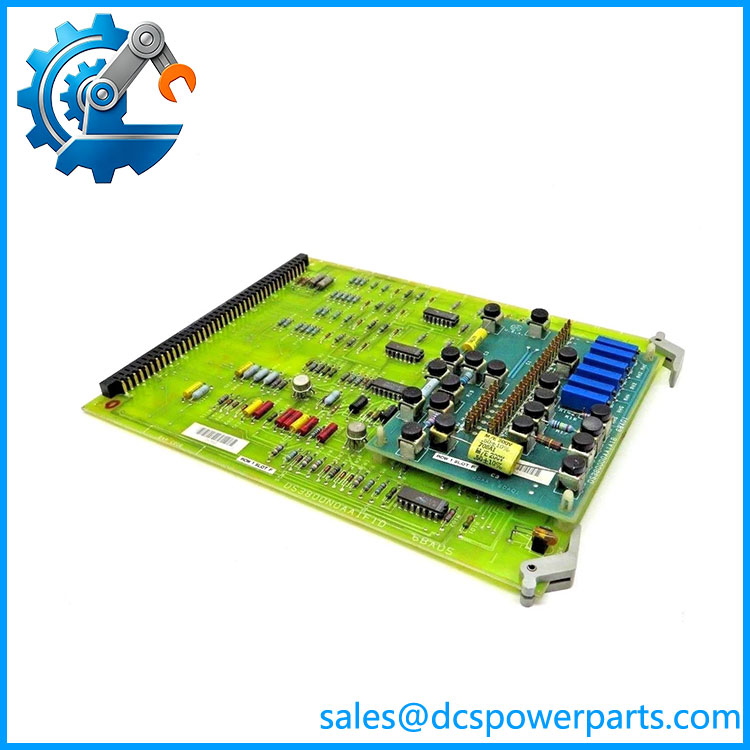

GE DS3800NB1F1B1A Overview
The GE DS3800NB1F1B1A is a printed circuit board assembly designed for the GE Speedtronic Mark IV turbine control platform. The DS3800 series represents one of GE’s earlier microprocessor-based turbine control hardware families and was widely deployed in gas and steam turbine applications.
The GE DS3800NB1F1B1A functions as an interface board within the Mark IV control architecture. These interface boards provide the electrical pathway required for communication and signal transfer between different sections of the turbine control system. In a Mark IV cabinet, each board has a dedicated role in processing, conditioning, or transferring turbine operating information.
The GE DS3800NB1F1B1A Speedtronic board belongs to a generation of turbine control hardware designed for long-term operation in demanding industrial environments. Mark IV systems were commonly installed on critical rotating equipment where reliable control, protection logic, and monitoring functions were required.
The DS3800NB1F1B1A is typically found in legacy GE turbine installations where maintaining the original Mark IV architecture remains necessary due to plant operating requirements, retrofit limitations, or extended equipment service life. Replacement of these boards requires attention to hardware revision, cabinet configuration, and existing control logic.
The should not be treated as a generic circuit board replacement. Compatibility depends on the exact Mark IV rack location, connected boards, jumper settings, firmware configuration, and application-specific parameters.
When replacing a , engineers should document the original board configuration before removal, including connector positions, hardware revision markings, and any adjustable settings. Legacy Speedtronic systems often depend on precise board-to-board communication paths, and incorrect substitution may create communication faults or unexpected turbine control alarms.
DS3800NB1F1B1A
Application Scenarios & Field Considerations
Engineering Pain Point
Common issues associated with aging DS3800 boards include:
- Intermittent turbine control alarms
- Loss of internal communication
- Signal processing errors
- Rack communication faults
- Unexpected controller resets
The board itself may be the cause, but engineers should also inspect:
- Backplane connections
- Power supply stability
- Adjacent interface boards
- Connector oxidation
- Cabinet environmental conditions
Recommended troubleshooting steps:
- Inspect board LEDs and diagnostic indicators
- Check rack seating condition
- Verify power supply voltages
- Inspect edge connectors
- Compare replacement board revision
- Review Mark IV diagnostic information
The operates as part of a larger Speedtronic control system. Proper diagnosis requires checking the complete rack communication and signal path.
Typical Applications
Gas Turbine Control Systems
Used for:
- Turbine sequencing
- Control signal exchange
- Protection system interfaces
Steam Turbine Systems
Applied for:
- Control cabinet signal processing
- Turbine monitoring functions
- Interface communication
Power Generation Plants
Used for:
- Generator package control
- Legacy turbine automation maintenance
- Replacement support for installed Mark IV systems
Industrial Turbine Packages
Applied in:
- Mechanical drive turbines
- Compressor stations
- Process plants
Technical Pitfalls to Avoid
1. Verify Exact Board Revision
Confirm:
- complete part number
- Revision letters
- Existing cabinet documentation
DS3800 boards with similar names may have different functions or hardware configurations.
2. Check Rack Position
Before installation, verify:
- Slot location
- Adjacent board connections
- Cable arrangement
- Backplane interface
3. Inspect Aging Hardware Conditions
Check:
- Capacitor condition
- Connector oxidation
- Solder joints
- Environmental contamination
4. Preserve Existing Configuration
Before replacement:
- Record jumper settings
- Photograph wiring connections
- Document board labels
- Verify system diagnostics after installation
