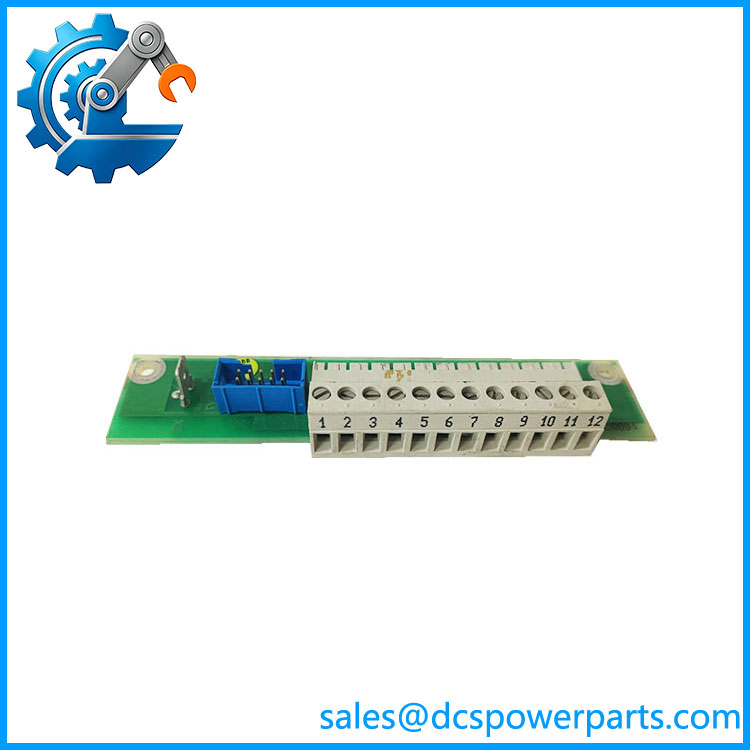

ABB DSTC175 57310001-KN | S100 Connection Unit

Description

Key Technical Specifications

The strongest available identification is consistent across multiple equipment references: 57310001-KN = DSTC175 = Connection Unit.

A procurement caution is warranted here. Publicly available records do not provide enough reliable information to assign detailed channel counts, signal voltage ranges, terminal numbering, or exact electrical ratings to this particular connection unit. Those values should not be guessed from visually similar ABB terminal boards.

The 57310001-KN/2 designation appears in ABB-related parts lists, which suggests that revision/suffix differences exist. When the installed system depends on a particular board revision, the complete label should be matched rather than ordering only by the generic DSTC175 name.

Application Scenarios & Pain Points

A connection fault in an aging S100 cabinet can look like an electronic failure. The controller reports an I/O problem, technicians replace a perfectly good module, and the original intermittent fault remains.

• ABB S100 I/O cabinets: DSTC175 serves as connection hardware within the legacy ABB control-system architecture.
• Advant Master maintenance: Useful when an existing connection unit has damaged terminals, worn contacts, or physical deterioration.
• Legacy DCS refurbishment: During cabinet maintenance, the connection unit can be inspected or replaced while retaining the associated active electronics.
• Emergency spare inventory: Keeping an exact spare is sensible when the installed system is old and the connection hardware is no longer routinely available through normal plant channels.

Field note: Before replacing the DSTC175, inspect terminal screws, wire ferrules, connector contacts, and the rear interface. A slightly loose termination can produce temperature-dependent faults that disappear when the cabinet door is opened or the wiring is disturbed.

DSTC175 57310001-KN

Related Products

• ABB DSTC175 57310001-KN/2 — A documented variant. It is the closest related part number, but the /2 suffix should be matched against the installed hardware before substitution.
• ABB DSTC176 57310001-KT/1 — Another ABB connection unit in the same general hardware family. It is not automatically interchangeable with ; the exact I/O configuration must be checked.
• ABB DSTC190 57520001-ER — ABB Master Bus hardware with a different system function. It supports bus-level communication rather than serving as the same connection-unit function.
• ABB DSTA131 57120001-CV — Analog input connection unit. It is useful for compatible analog-input configurations but performs a different interface role.
• ABB DSTA180 57120001-ET — Analog output connection unit. Its signal direction differs from input-oriented interface hardware, so it should not be treated as a generic replacement.
• ABB DSBC172 57310001-KD — Bus Repeater Master used within the S100/Advant Master architecture. It addresses bus communication rather than field-terminal connection.
• ABB DSCS131 57310001-LM — Communication-related Advant Master hardware. It performs a system communication role rather than the physical I/O connection function of .
• ABB DSRF180A 57310255-AV — MasterPiece equipment frame/card file. It provides the physical rack structure for compatible boards and is therefore complementary infrastructure rather than a direct functional replacement.

The Engineer’s Guide: Field Pitfalls to Avoid

⚠️ Do not treat as a generic terminal board.

The part is specifically identified as an ABB DSTC-175 Connection Unit.

How to avoid it: Match the complete 57310001-KN number and verify the connected I/O module and cabinet wiring before installation.

⚠️ Watch the suffix.

ABB-related parts lists identify 57310001-KN/2 as .

How to avoid it: Photograph the complete label before removing the existing unit. Record the base number, suffix, board revision, and cabinet location.

⚠️ Do not diagnose an interface fault from controller alarms alone.

An intermittent terminal or connector problem can generate the same symptom as a failed I/O module.

How to avoid it: Check continuity, terminal tightness, connector seating, field wiring, and signal behavior before replacing expensive active electronics.

Frequently Asked Questions (FAQ)

What is ABB 57310001-KN?

57310001-KN is an ABB Connection Unit associated with the Advant Master/S100 control-system environment. It is interface hardware rather than a processor or conventional I/O channel module.

Is an S100 I/O module?

It is better classified as a connection/interface unit within the I/O architecture. It should not be confused with an active analog or digital I/O electronics module.

Is 57310001-KN the same as ?

Yes. Available equipment records explicitly identify 57310001-KN as DSTC-175 Connection Unit.

What is the difference between 57310001-KN and 57310001-KN/2?

Both references are associated with , but the /2 suffix indicates a specific variant or revision. Do not assume interchangeability without checking the installed system documentation and board markings.

Can be replaced with DSTC176?

Not automatically. Although both are ABB connection-unit designations, the documented part numbers are different: = 57310001-KN, while DSTC176 = 57310001-KT/1. Their electrical termination and intended system positions should be verified before substitution.

What should I check when buying a replacement ?

At minimum, verify:

1. Complete part number: 57310001-KN.
2. Any suffix such as /2.
3. Terminal and connector condition.
4. Backplane/interface contacts.
5. Physical mounting arrangement.
6. Existing I/O module compatibility.
7. Whether the unit has actually been function-tested.

For a legacy DCS spare, a clean front panel is not meaningful evidence by itself. The terminal interfaces and connector contacts deserve the closest inspection.
